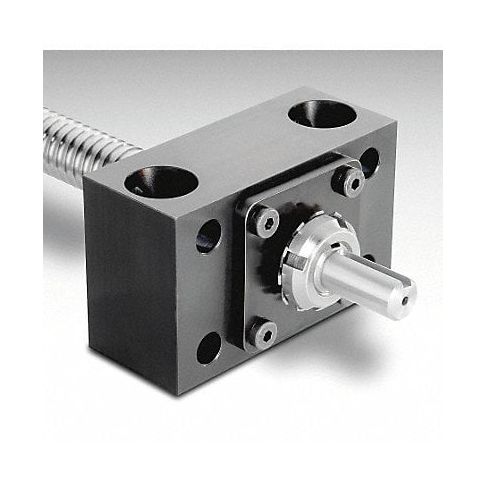

Ball Nut End Block Bore Dia 20 mm MPN:7824157
Ball Nut End Ball Bearing Block with a 20 mm Bore Diameter is an essential component designed for various industrial, automotive or construction equipment requiring stable, low friction movement along linear axes under heavy loads. Its ball bearings technology provides efficient energy transfer from the input shaft to the output while reducing wear over time thus extending bearing service life. This Ball Nut End Block features self-lubricating properties which minimize the need for additional lubrication during maintenance, reducing downtime costs and streamlining upkeep procedures in diverse industries such as mining, agriculture, or assembly lines where efficient movement of equipment parts is paramount. The compact design of Ball Nut End Block allows convenient fitting in tight spaces, while its high strength stainless steel material offers exceptional durability against rust corrosion or mechanical damage.
Technical Specifications
- Item Ball Nut End Block
- Type Quick Mount
- Bore Dia. (mm) 20
- Overall Width (In.) 2.7 in
- Overall Length (In.) 4.5 in
- Overall Height (In.) 2.75 in
- Length through Bore (In.) 2.2 in
- Mounting Surface to Shaft Center (In.) 1.44 in
- Mounting Hole Dia. (In.) 0.656/0.406
- Material Carbon Steel
- For Use With 2LGE6-7, 2LGF4-6, 2LGG4-6
Manufacturer Details
- Manufacturer: Thompson
- Condensed Mfg Number: 7824157
- MPN: 7824157
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Ball Screw Flanges and End Blocks
- GDS Family Name: Linear Motion
- GDS Segment Name: Power Transmission
- UNSPSC: 26111535
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Kinetic power transmission
- UNSPSC Commodity ID: 35
- UNSPSC Commodity Name: Ballscrews or ballscrew assemblies
- UNSPSC Family ID: 11
- UNSPSC Family Name: Batteries and generators and kinetic power transmission
- UNSPSC Segment ID: 26
- UNSPSC Segment Name: Power Generation and Distribution Machinery and Accessories
Shipping Details
- Not For Sale In: HI AK PR
