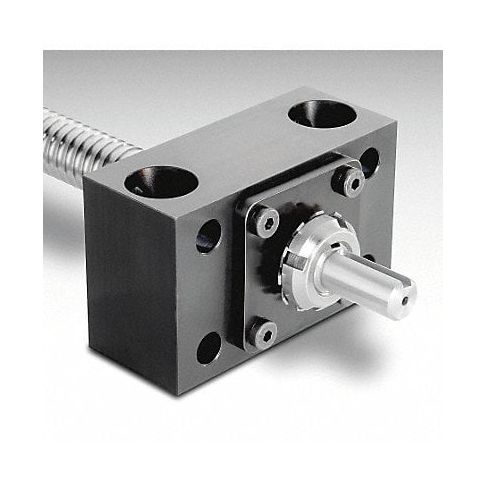

Ball Nut End Block Bore Dia 15 mm MPN:7824155
Ball Nut End Block Bore Dia 15 mm
Ball nut end blocks are precision-machined components that feature a hemispherical ball end on one side, allowing for precise linear motion and rotation with minimal friction. This particular model has a bore diameter of 15 mm, making it suitable for applications requiring such specifications. Its solid construction and smooth operation make it ideal for use in various industries, including aerospace, automotive, medical, and electronics, where accurate linear motion is essential. As such, ball nut end blocks provide efficient, cost-effective solutions for precise positioning or movement in numerous applications.
Made of durable carbon steel, this right-hand thread ball nut is non-preloaded. End block is quick-mount.
Technical Specifications
- Item Ball Nut End Block
- Type Quick Mount
- Bore Dia. (mm) 15
- Overall Width (In.) 2.1 in
- Overall Length (In.) 3.5 in
- Overall Height (In.) 2.13 in
- Length through Bore (In.) 1.73 in
- Mounting Surface to Shaft Center (In.) 1.13 in
- Mounting Hole Dia. (In.) 0.406/0.281
- Material Carbon Steel
- For Use With 2LGE5, 2LGF3, 2LGG3
Manufacturer Details
- Manufacturer: Thompson
- Condensed Mfg Number: 7824155
- MPN: 7824155
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Ball Screw Flanges and End Blocks
- GDS Family Name: Linear Motion
- GDS Segment Name: Power Transmission
- UNSPSC: 26111535
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Kinetic power transmission
- UNSPSC Commodity ID: 35
- UNSPSC Commodity Name: Ballscrews or ballscrew assemblies
- UNSPSC Family ID: 11
- UNSPSC Family Name: Batteries and generators and kinetic power transmission
- UNSPSC Segment ID: 26
- UNSPSC Segment Name: Power Generation and Distribution Machinery and Accessories
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 9:52pm UTC
Category: Linear Motion
