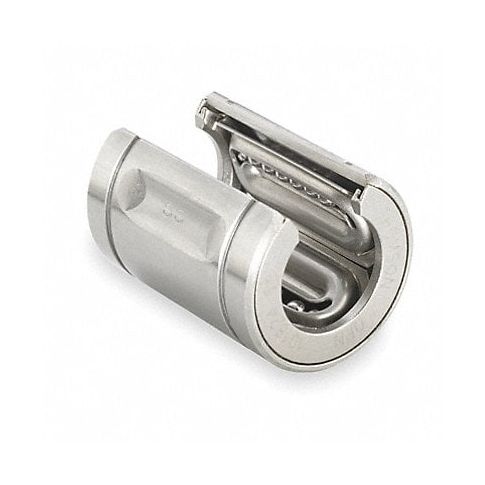

Ball Bushing Bore Dia 1.000 In MPN:OPN162536
The ball bushing features a 1.000 inch diameter bore and is specifically designed for unmounted linear bearings - offering smooth, precise movement with minimal friction. This component utilizes two rows of balls which sit directly between the outer ring and inner ring to provide exceptional load carrying capacity while simultaneously distributing stress evenly across the entire bearing length. Capable of handling a wide range of applications such as precision machinery, robotics, or automation systems that require smooth motion and low noise levels; these unmounted ball bearings are constructed from high-quality steel material ensuring long lasting performance in demanding environments. Invest in an effective solution for your next project today!
Technical Specifications
- Item Ball Bushing Bearing
- Type Open
- Bore Dia. 1.0 in
- Inside Dia. Tolerance +/-.001
- Outside Dia. 1.563 in
- Slot Width (In.) 0.56 in
- Slot Angle (Degrees) 60
- Between Grooves (mm) 1.759 in
- Length (In.) 2.25 in
- Accelerated Speed 450 fps
- Steady State Speed 10 fps
- Temp. Range (F) 0 - 300
- Material Steel
- Required Housing Bore Dia. (In.) 1.563 in
- For Use With Thomson Shafting
Manufacturer Details
- Manufacturer: Thompson
- Condensed Mfg Number: OPN162536
- MPN: OPN162536
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8482105012
- GDS Category Name: Unmounted Linear Ball Bearings
- GDS Family Name: Linear Motion
- GDS Segment Name: Power Transmission
- UNSPSC: 31171506
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Linear bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
