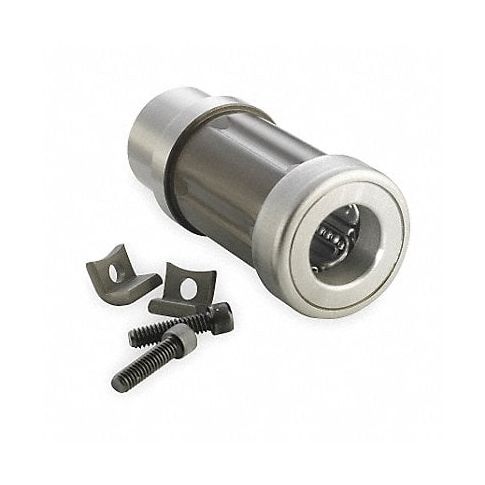

Ball Bushing Die Bore Dia 2.000 In MPN:DS32
Ball Bushing Die Bore Dia 2.000 In
Our Premium Quality Ball Bushing offers exceptional performance in high precision applications due to its superb tolerance, roundness, and finish. Crafted from premium carbon steel for strength and durability, this bore diameter of 2.000 In makes it perfect for demanding jobs such as engine building or heavy-duty equipment repairs. Its hardened steel balls minimize wear on the die and improve retention while also reducing the likelihood of marring or scratching sensitive components. Engineered to fit precisely within ball lock pins, our ball bushing delivers maximum alignment and holds its shape well even after extended use. Upgrade to premium quality with our ball bushing today!
This Ball Bushing® linear die set is engineered to fit the mounting hole of the punch holder in a standard die. It can operate at a travel rate as high as 10 fps, and at accelerations as high as 450 fps. It features steel material construction for durability and long service life in industrial applications.
Technical Specifications
- Item Ball Bushing Die Set
- Bore Dia. (In.) 2 in
- Bore Tolerance +/-0.001
- Outside Dia. (In.) 3.53 in
- Pilot Dia. (In.) 2.501/2.500
- Pilot Length (In.) 1.94 in
- Clamp Dia. (In.) 4.76 in
- Overall Length (In.) 6.36 in
- Bolt Circle Dia. (In.) 3.88 in
- Dynamic Load Capacity (Lb.) 1,100
- Temp. Range (F) 0 - 600
- Bearing Type Die Set
- Material Steel
- Finish Steel
- Color Steel
- For Use With Thomson Shafting
- Includes Clamps and Mounting Screws
Manufacturer Details
- Manufacturer: Thompson
- Condensed Mfg Number: DS32
- MPN: DS32
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8482105068
- GDS Category Name: Linear Die Sets
- GDS Family Name: Linear Motion
- GDS Segment Name: Power Transmission
- UNSPSC: 31171506
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Linear bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 9:52pm UTC
Category: Linear Motion
