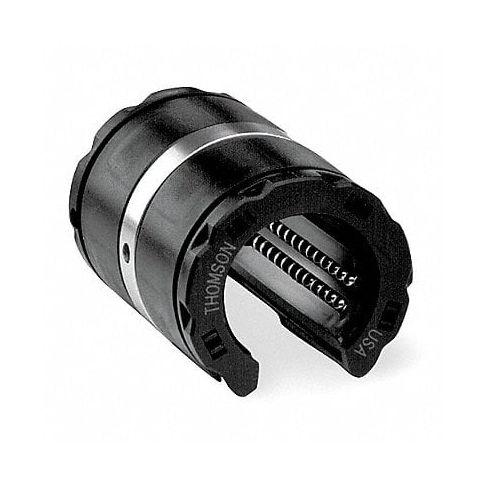

Super Plus Bushing Bore Dia 12 mm MPN:SPM12OPNWW
Super plus bushing is widely used across various industries, including agriculture, automotive, construction equipment, textile machines, and more due to its wear resistance, reduced friction, low deformation under stress, and energy efficiency during power transmission processes. These bushings have a bore diameter of 12mm which allows for compatibility with a range of shaft sizes while maintaining optimal performance. Manufacturers can experience lower downtime and extended equipment lifespan by using these durable bushings. The increased load capacity enables better mechanical precision and reduces costs associated with replacement parts in the long run. Overall, industries that rely on precision machinery and reliable power transmission components benefit significantly from using super plus bushings like this product.
Technical Specifications
- Item Super Plus Bushing Bearing
- Type Open
- Bore Dia. 12 mm
- Inside Dia. Tolerance + .011
- Outside Dia. 22 mm
- Slot Width (mm) 7
- Slot Angle (Degrees) 70
- Retention Hole Dia. (mm) 3 mm
- Retention Hole Location 1.35mm on the Center Line
- Between Grooves (mm) 22.6 mm
- Length (mm) 32
- Accelerated Speed 150 mm/sec
- Steady State Speed 3 mm/sec
- Temp. Range (F) 0 - 185
- Self-Alignment Yes
- Material Delrin
- Load Capacity 751
- For Use With Thomson Shafting
Manufacturer Details
- Manufacturer: Thompson
- Condensed Mfg Number: SPM12OPNWW
- MPN: SPM12OPNWW
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Unmounted Linear Ball Bearings
- GDS Family Name: Linear Motion
- GDS Segment Name: Power Transmission
- UNSPSC: 31171506
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Linear bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
