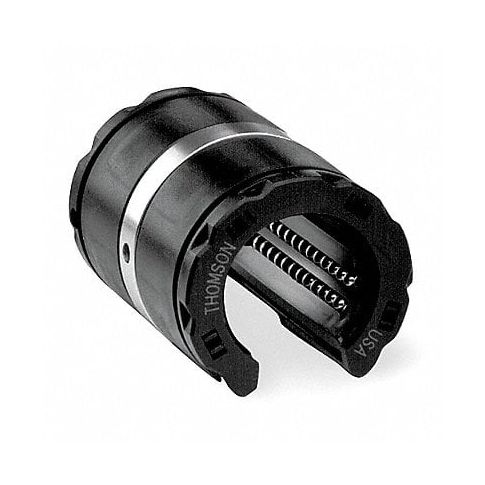

Super Plus Bushing Bore Dia 12 mm MPN:SPM12OPN
Super plus bushing is a high-performance product used across multiple sectors such as agriculture, automotive, construction equipment, and textile machinery. It offers exceptional features such as wear resistance, low friction coefficient, and minimal deformation even under pressure, making it ideal for precise power transmission processes. With a 12mm bore diameter, these bushings offer compatibility with various shaft sizes without compromising on performance. The sturdy construction of the bushing ensures lower downtime while increasing the life span of equipment. Additionally, manufacturers can benefit from reduced maintenance costs as the increased load capacity ensures improved precision and reliability in the long run. Overall, industries that require accurate machinery components like unmounted linear ball bearings can immensely gain from using super plus bushings like this product.
Technical Specifications
- Item Super Plus Bushing Bearing
- Type Open
- Bore Dia. 12 mm
- Inside Dia. Tolerance + .011
- Outside Dia. 22 mm
- Slot Width (mm) 7
- Slot Angle (Degrees) 70
- Retention Hole Dia. (mm) 3 mm
- Retention Hole Location 1.35mm on the Center Line
- Between Grooves (mm) 22.6 mm
- Length (mm) 32
- Accelerated Speed 150 mm/sec
- Steady State Speed 3 mm/sec
- Temp. Range (F) 0 - 185
- Self-Alignment Yes
- Material Delrin
- Load Capacity 750
- For Use With Thomson Shafting
Manufacturer Details
- Manufacturer: Thompson
- Condensed Mfg Number: SPM12OPN
- MPN: SPM12OPN
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Unmounted Linear Ball Bearings
- GDS Family Name: Linear Motion
- GDS Segment Name: Power Transmission
- UNSPSC: 31171506
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Linear bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
