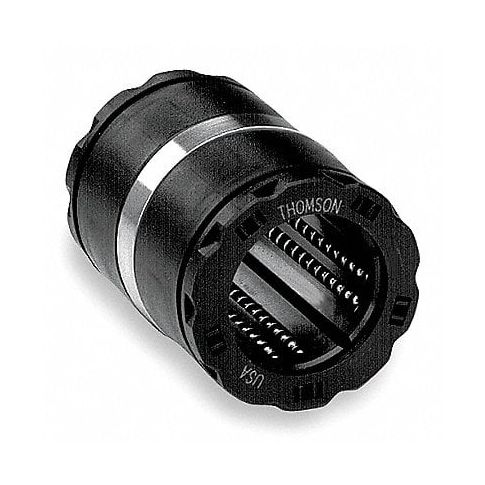

Super Plus Bushing Bore Dia 8 mm MPN:SPM08WW
Super Plus Bushing Bore Dia 8 mm
Super Plus Bushing Bore Dia 8 mm is a high-performance brass bushing designed for use with 8mm (0.315) shafts in power transmission applications where precision and accuracy are required. With a P8 material grade, this bushing has higher tolerances than standard bronze bushings for snug fits and smooth rotation, minimizing wear on the shaft and housing over time. Its smaller bore diameter makes it ideal for use in tight spaces or when reducing friction in mechanical systems. The Super Plus bushing offers excellent resistance to shock loads and is chemically inert against many common oils and solvents, making it a versatile choice for various industries such as automotive, machinery, textile, or robotics.
Buy Thompson item #SPM08WW to have a positive impact 📈 on our community of Service Disabled Veteran-Owned Business partners.
Technical Specifications
- Item Super Plus Bushing Bearing
- Type Closed
- Bore Dia. 8 mm
- Inside Dia. Tolerance + .009
- Outside Dia. 16 mm
- Between Grooves (mm) 16.2 mm
- Length (mm) 25
- Accelerated Speed 150 mm/sec
- Steady State Speed 3 mm/sec
- Temp. Range (F) 0 - 185
- Self-Alignment Yes
- Material Delrin
- Load Capacity 310
- For Use With Thomson Shafting
Manufacturer Details
- Manufacturer: Thompson
- Condensed Mfg Number: SPM08WW
- MPN: SPM08WW
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 3917400000
- GDS Category Name: Unmounted Linear Ball Bearings
- GDS Family Name: Linear Motion
- GDS Segment Name: Power Transmission
- UNSPSC: 31171506
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Linear bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 9:52pm UTC
Category: Linear Motion
