Ball Bushing Bore Dia 1.500 In MPN:SSU24OPNWW
Ball Bushing Bore Dia 1.500 In
This flighted stainless steel standard screw comes in a 18-8 construction featuring a type A drive, number 10-32 thread count, and measures 1 in length with 1/4's attachment offering versatility suitable for industries catering to various fastening needs. Its 1A driver provides secure insertion while preventing cam out while its durable stainless steel construction provides resistance to corrosive environments making it an ideal solution for industrial or automotive applications thus providing value as a reliable product in various settings.

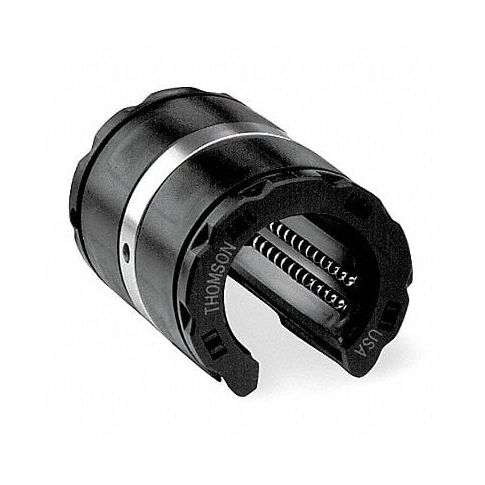

Super Smart Ball Bushing®Designed to maintain diametrical fit when installed in housings that are slightly out-of-round. Provide twice the load-carrying capacity, or 8 times the travel life of Super Ball Bushing® bearings?and 6 times the load, or 216 times the travel life of conventional linear bearings.Linear Ball Bushing Bearings• Steady-state speeds to 10 fps; acceleration to 450 fps2 Max. temp.: 185° F Coefficient of friction as low as 0.001 Self-aligning
Technical Specifications
- Item Ball Bushing Bearing
- Type Open
- Bore Dia. 1.5 in
- Inside Dia. Tolerance +/-0.001
- Outside Dia. 2.375 in
- Slot Width (In.) 0.74 in
- Slot Angle (Degrees) 30
- Retention Hole Dia. (mm) 0.2 in
- Retention Hole Location 0.19 in
- Between Grooves (mm) 2.442 in
- Length (In.) 3 in
- Accelerated Speed 450 fps
- Steady State Speed 10 fps
- Temp. Range (F) 0 a 185
- Self-Alignment Yes
- Material Delrin
- Required Housing Bore Dia. (In.) 2.375 in
- For Use With Thomson Shafting
Manufacturer Details
- Manufacturer: Thompson
- Condensed Mfg Number: SSU24OPNWW
- MPN: SSU24OPNWW
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Unmounted Linear Ball Bearings
- GDS Family Name: Linear Motion
- GDS Segment Name: Power Transmission
- UNSPSC: 31171506
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Linear bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 9:52pm UTC
Category: Linear Motion
