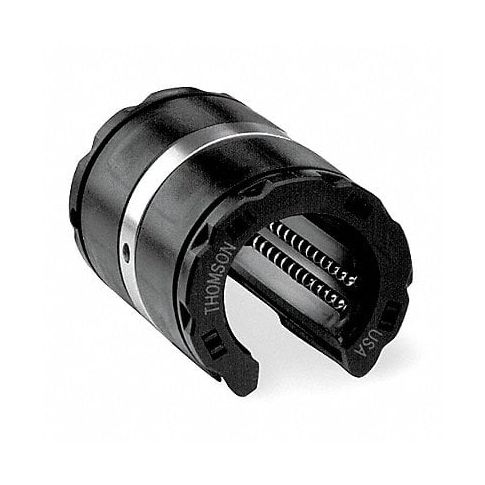

Ball Bushing Bore Dia 1.250 In MPN:SSU20OPNWW
The Ball Bushing's precision bore of 1.250 inch and tolerance rating of +0/0-.005 provide stable alignment of shafts with housings, bushings or bearing races during assembly operations making it ideal for aerospace manufacturers requiring zero defects standards or automotive OEM's adhering to stringent guidelines; it also benefits machinists specializing in precision engine rebuilds where ultra-smooth surface finishes are crucial thus minimizing vibrations while reducing wear and tear between components during operation resulting improved performance; tool & die makers can greatly benefit from its tight tolerance design for use when machining tight-fitting hole applications without creating wobble or misalignment thus preventing damage to sensitive components, hence extending product lifetime leading to cost savings in the long run.
Technical Specifications
- Item Ball Bushing Bearing
- Type Open
- Bore Dia. 1.25 in
- Inside Dia. Tolerance +/-0.001
- Outside Dia. 2 in
- Slot Width (In.) 0.62 in
- Slot Angle (Degrees) 30
- Retention Hole Dia. (mm) 0.2 in
- Retention Hole Location 0.19 in
- Between Grooves (mm) 2.031 in
- Length (In.) 2.625 in
- Accelerated Speed 450 fps
- Steady State Speed 10 fps
- Temp. Range (F) 0 a 185
- Self-Alignment Yes
- Material Delrin
- Required Housing Bore Dia. (In.) 2 in
- For Use With Thomson Shafting
Manufacturer Details
- Manufacturer: Thompson
- Condensed Mfg Number: SSU20OPNWW
- MPN: SSU20OPNWW
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Unmounted Linear Ball Bearings
- GDS Family Name: Linear Motion
- GDS Segment Name: Power Transmission
- UNSPSC: 31171506
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Linear bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
