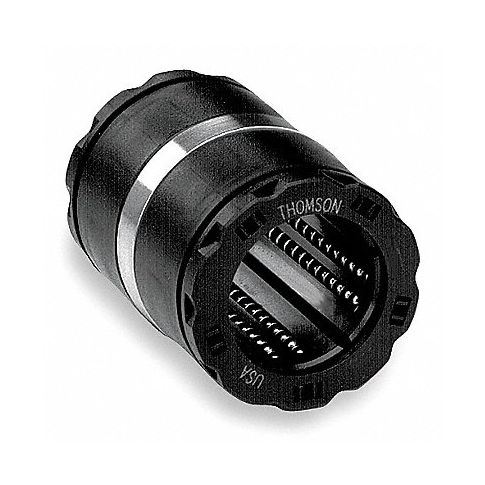

Ball Bushing Bore Dia 0.625 In MPN:SSU10
Ball Bushing Bore Dia 0.625 In
Ball bushing with bore diameter of 0.625 inch offers precision linear motion control in challenging environments with high load, chemical exposure, or corrosion resistance. Low friction, size X-large for extra safety measures against hazardous substances, high accuracy ratings, and wear resistance contribute to its durability and reliability in aerospace or automotive industries requiring precise control over linear motion systems. Key benefits include protection from chemical exposure with nitrile construction, smooth movement under load, preventing maintenance costs due to exceptional wear-resistance and ensuring longevity while maintaining performance.
Super Smart Ball Bushing®Designed to maintain diametrical fit when installed in housings that are slightly out-of-round. Provide twice the load-carrying capacity, or 8 times the travel life of Super Ball Bushing® bearings?and 6 times the load, or 216 times the travel life of conventional linear bearings.Linear Ball Bushing Bearings• Steady-state speeds to 10 fps; acceleration to 450 fps2 Max. temp.: 185° F Coefficient of friction as low as 0.001 Self-aligning
Technical Specifications
- Item Ball Bushing Bearing
- Type Closed
- Bore Dia. 0.625 in
- Inside Dia. Tolerance +/-0.001
- Outside Dia. 1.125 in
- Between Grooves (mm) 1.125 in
- Length (In.) 1.5 in
- Accelerated Speed 450 fps
- Steady State Speed 10 fps
- Temp. Range (F) 0 Degrees to 185 Degrees
- Self-Alignment Yes
- Material Delrin
- Required Housing Bore Dia. (In.) 1.125 in
- For Use With Thomson Shafting
Manufacturer Details
- Manufacturer: Thompson
- Condensed Mfg Number: SSU10
- MPN: SSU10
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8482105012
- GDS Category Name: Unmounted Linear Ball Bearings
- GDS Family Name: Linear Motion
- GDS Segment Name: Power Transmission
- UNSPSC: 31171506
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Linear bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 9:52pm UTC
Category: Linear Motion
