Super Ball Bushing Bore Dia 2.000 In MPN:SUPER32

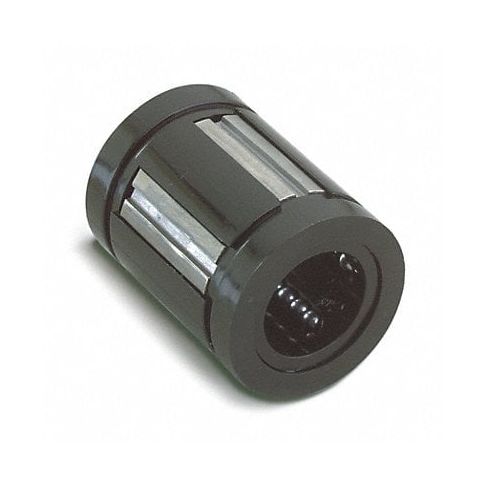

Super Ball Bushing Bore Dia 2.000 In
Super ball bushing bearings are a cost-effective, self-lubricating solution for applications requiring minimal friction while maintaining precise alignment. Manufactured with high precision stainless steel and resin, the 2 diameter bore size ensures compatibility with a wide range of shafts, making it suitable for various industries like agriculture, automotive, construction or general machining needs where load capacity and shock absorption are critical; ideal for use in precision motion applications such as tables, slides, guides or hinges; saves time, energy and expense during maintenance due to reduced wear, ensuring longevity even under severe environments.
Super Ball Bushing®Wear-resistant, engineered polymer retainers and outer sleeves reduce inertia and noise in critical high-speed applications. Offer 3 times the load capacity, or 27 times the travel life of conventional linear bearings.Linear Ball Bushing Bearings• Steady-state speeds to 10 fps; acceleration to 450 fps2 Max. temp.: 185° F Coefficient of friction as low as 0.001 Self-aligning
Technical Specifications
- Item Super Ball Bushing Bearing
- Type Closed
- Bore Dia. 2.0 in
- Inside Dia. Tolerance +/-0.001
- Outside Dia. 3 in
- Between Grooves (mm) 3.193 in
- Length (In.) 4 in
- Accelerated Speed 450 fps
- Steady State Speed 10 fps
- Temp. Range (F) 0 a 185
- Self-Alignment Yes
- Material Delrin
- Required Housing Bore Dia. (In.) 3 in
- For Use With Thomson Shafting
Manufacturer Details
- Manufacturer: Thompson
- Condensed Mfg Number: SUPER32
- MPN: SUPER32
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Unmounted Linear Ball Bearings
- GDS Family Name: Linear Motion
- GDS Segment Name: Power Transmission
- UNSPSC: 31171506
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Linear bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 9:52pm UTC
Category: Linear Motion
