Super Ball Bushing Bore Dia 1.500 In MPN:SUPER24OPN
SKU
226-CXO-2LEW6

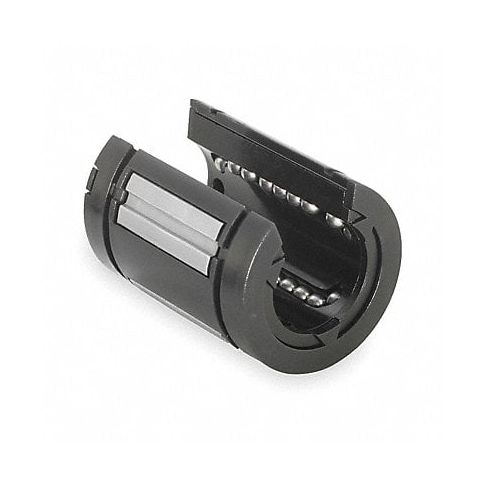

Super Ball Bushing Bore Dia 1.500 In
The Super ball bushing offers versatility in various applications requiring low-friction bearings, exhibiting impressive load-bearing capacity under extreme pressure conditions. Its bore diameter measures 1.50 inches making it suitable for precision instrumentation, and the chrome steel construction provides a long-lasting wear-resistant surface ideal for harsh environments. Perfect for industrial settings, this ball bushing ensures smooth rotary movement while providing excellent stability stability supporting heavy loads, an essential component in numerous machinery designs demanding reliable operation.
Super Ball Bushing®Wear-resistant, engineered polymer retainers and outer sleeves reduce inertia and noise in critical high-speed applications. Offer 3 times the load capacity, or 27 times the travel life of conventional linear bearings.Linear Ball Bushing Bearings• Steady-state speeds to 10 fps; acceleration to 450 fps2 Max. temp.: 185° F Coefficient of friction as low as 0.001 Self-aligning
Technical Specifications
- Item Super Ball Bushing Bearing
- Type Open
- Bore Dia. 1.5 in
- Inside Dia. Tolerance +/-0.001
- Outside Dia. 2.375 in
- Slot Width (In.) 0.75 in
- Slot Angle (Degrees) 15
- Retention Hole Dia. (mm) 0.2 in
- Retention Hole Location 0.19 in
- Between Grooves (mm) 2.41 in
- Length (In.) 3 in
- Accelerated Speed 450 fps
- Steady State Speed 10 fps
- Temp. Range (F) 0 a 185
- Self-Alignment Yes
- Material Delrin
- Required Housing Bore Dia. (In.) 2.375 in
- For Use With Thomson Shafting
Manufacturer Details
- Manufacturer: Thompson
- Condensed Mfg Number: SUPER24OPN
- MPN: SUPER24OPN
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8482105012
- GDS Category Name: Unmounted Linear Ball Bearings
- GDS Family Name: Linear Motion
- GDS Segment Name: Power Transmission
- UNSPSC: 31171506
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Linear bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 9:52pm UTC
Category: Linear Motion
