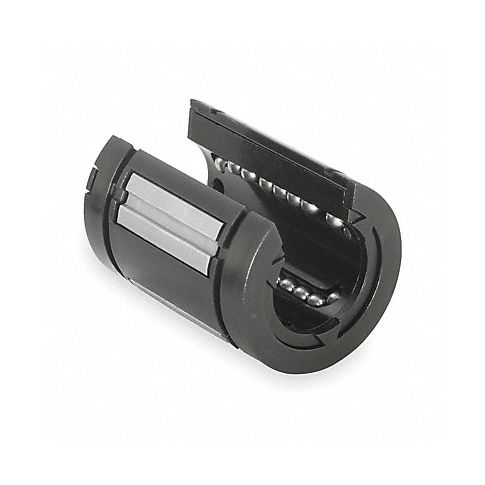

Super Ball Bushing Bore Dia 1.250 In MPN:SUPER20OPN
SKU
226-CXO-2LEW4
Super Ball Bushing Bore Dia 1.250 In
Garland Supply Co.'s super ball bushing made of high-quality stainless steel offers a unique bearing solution for various industries such as automotive or agriculture due to its precision size of 1.250. Its self-lubricating properties reduce friction thus promoting smooth movement without requiring added lubrication, increasing service life while offering cost-efficiency. With applications in various shaft components, ball bushings provide low torque yet allow rotational movement while maintaining alignment resulting in reliable performance for extended periods. This versatile bushing cater to both industrial and DIY applications, ensuring customer satisfaction worldwide due to its consistent performance.
Super Ball Bushing®Wear-resistant, engineered polymer retainers and outer sleeves reduce inertia and noise in critical high-speed applications. Offer 3 times the load capacity, or 27 times the travel life of conventional linear bearings.Linear Ball Bushing Bearings• Steady-state speeds to 10 fps; acceleration to 450 fps2 Max. temp.: 185° F Coefficient of friction as low as 0.001 Self-aligning
Technical Specifications
- Item Super Ball Bushing Bearing
- Type Open
- Bore Dia. 1.25 in
- Inside Dia. Tolerance +/-0.001
- Outside Dia. 2 in
- Slot Width (In.) 0.62 in
- Slot Angle (Degrees) 15
- Retention Hole Dia. (mm) 0.2 in
- Retention Hole Location 0.19 in
- Between Grooves (mm) 2.004 in
- Length (In.) 2.625 in
- Accelerated Speed 450 fps
- Steady State Speed 10 fps
- Temp. Range (F) 0 a 185
- Self-Alignment Yes
- Material Delrin
- Required Housing Bore Dia. (In.) 2 in
- For Use With Thomson Shafting
Manufacturer Details
- Manufacturer: Thompson
- Condensed Mfg Number: SUPER20OPN
- MPN: SUPER20OPN
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8482105012
- GDS Category Name: Unmounted Linear Ball Bearings
- GDS Family Name: Linear Motion
- GDS Segment Name: Power Transmission
- UNSPSC: 31171506
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Linear bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 9:52pm UTC
Category: Linear Motion
