Super Ball Bushing Bore Dia 1.000 In MPN:SUPER16
SKU
226-CXO-2LEW1

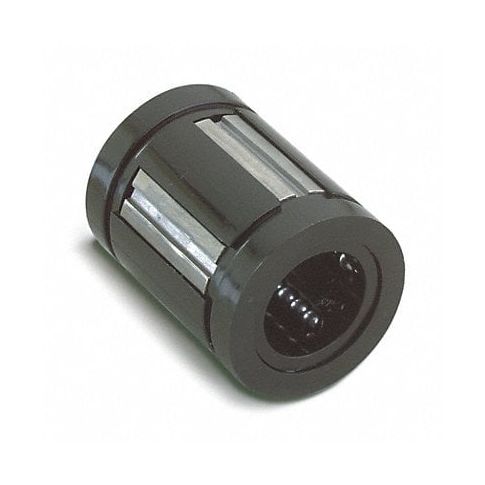

Super Ball Bushing Bore Dia 1.000 In
The Super Ball Bushing is a self-lubricating and low friction bearing designed to provide smooth movement in linear motion systems. Its bore diameter measures 1 inch, making it ideal for various power transmission and linear motion applications, including shaft alignment, coupling components, and slide blocks. Due to its high load capacity, the Super Ball Bushing is suitable for heavy-duty use and can accommodate axial loads and moment loads simultaneously. With minimal maintenance required, this ball bushing is an excellent choice for professionals seeking reliable performance in demanding environments across multiple industries, such as automotive, construction, and machine tooling.
Super Ball Bushing®Wear-resistant, engineered polymer retainers and outer sleeves reduce inertia and noise in critical high-speed applications. Offer 3 times the load capacity, or 27 times the travel life of conventional linear bearings.Linear Ball Bushing Bearings• Steady-state speeds to 10 fps; acceleration to 450 fps2 Max. temp.: 185° F Coefficient of friction as low as 0.001 Self-aligning
Technical Specifications
- Item Super Ball Bushing Bearing
- Type Closed
- Bore Dia. 1.0 in
- Inside Dia. Tolerance +/-.001
- Outside Dia. 1.563 in
- Between Grooves (mm) 1.884 in
- Length (In.) 2.25 in
- Accelerated Speed 450 fps
- Steady State Speed 10 fps
- Temp. Range (F) 0 - 185
- Self-Alignment Yes
- Material Delrin
- Required Housing Bore Dia. (In.) 1.563 in
- For Use With Thomson Shafting
Manufacturer Details
- Manufacturer: Thompson
- Condensed Mfg Number: SUPER16
- MPN: SUPER16
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8482105012
- GDS Category Name: Unmounted Linear Ball Bearings
- GDS Family Name: Linear Motion
- GDS Segment Name: Power Transmission
- UNSPSC: 31171506
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Linear bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 9:52pm UTC
Category: Linear Motion
