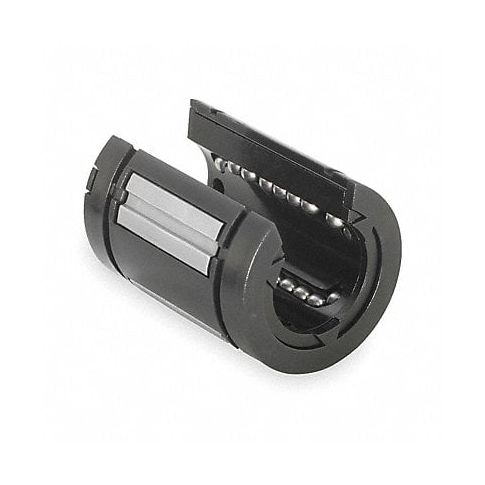

Super Ball Bushing Bore Dia 0.750 In MPN:SUPER12OPN
Super Ball Bushing Bore Dia 0.750 In
The 1/8 inch diameter jobber length drill bit kit made from high-speed steel is the perfect tool for drilling clean, accurate holes in a variety of materials including wood, metal, plastic or masonry surfaces. With a total of five bits ranging from 60mm to 120mm in length, this versatile set caters to most DIY or commercial needs while featuring a spiral flute design allowing for faster and cleaner cuts reducing debris accumulation during operation. Easy-to-read sizes etched on each bit provide users with easy identification of the size while their balanced construction offers a longer life and reduced vibration.
Super Ball Bushing®Wear-resistant, engineered polymer retainers and outer sleeves reduce inertia and noise in critical high-speed applications. Offer 3 times the load capacity, or 27 times the travel life of conventional linear bearings.Linear Ball Bushing Bearings• Steady-state speeds to 10 fps; acceleration to 450 fps2 Max. temp.: 185° F Coefficient of friction as low as 0.001 Self-aligning
Technical Specifications
- Item Super Ball Bushing Bearing
- Type Open
- Bore Dia. 0.75 in
- Inside Dia. Tolerance +/-0.001
- Outside Dia. 1.25 in
- Slot Width (In.) 0.43 in
- Slot Angle (Degrees) 15
- Retention Hole Dia. (mm) 0.14 in
- Retention Hole Location 0.13 in
- Between Grooves (mm) 1.27 in
- Length (In.) 1.625 in
- Accelerated Speed 450 fps
- Steady State Speed 10 fps
- Temp. Range (F) 0 a 185
- Self-Alignment Yes
- Material Delrin
- Required Housing Bore Dia. (In.) 1.25 in
- For Use With Thomson Shafting
Manufacturer Details
- Manufacturer: Thompson
- Condensed Mfg Number: SUPER12OPN
- MPN: SUPER12OPN
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8482105012
- GDS Category Name: Unmounted Linear Ball Bearings
- GDS Family Name: Linear Motion
- GDS Segment Name: Power Transmission
- UNSPSC: 31171506
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Linear bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 9:52pm UTC
