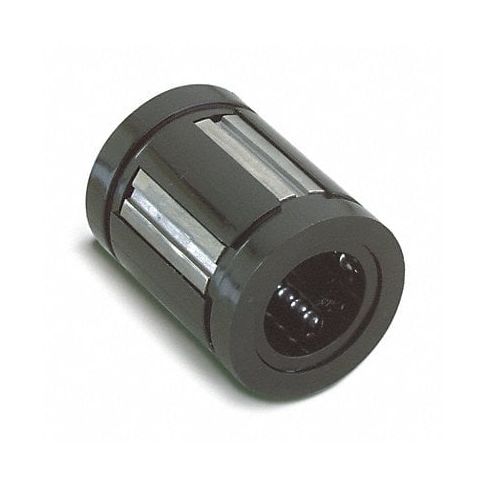

Super Ball Bushing Bore Dia 0.750 In MPN:SUPER12
Super Ball Bushing Bore Dia 0.750 In
The bore size 0.75 inch super ball bushing is made of steel with black oxide finish providing durability, resistance to wear and excellent load carrying capacity. Available in a range of sizes to fit your needs, this precision manufactured bearing can be used in numerous applications including pivot points, linkage points, bracket mounts, and more within industries such as agriculture, automotive or construction machinery without requiring any grease or oil. It provides smooth rotation and low-friction movement under heavy loads ensuring consistent performance even after prolonged use.
Super Ball Bushing®Wear-resistant, engineered polymer retainers and outer sleeves reduce inertia and noise in critical high-speed applications. Offer 3 times the load capacity, or 27 times the travel life of conventional linear bearings.Linear Ball Bushing Bearings• Steady-state speeds to 10 fps; acceleration to 450 fps2 Max. temp.: 185° F Coefficient of friction as low as 0.001 Self-aligning
Technical Specifications
- Item Super Ball Bushing Bearing
- Type Closed
- Bore Dia. 0.75 in
- Inside Dia. Tolerance +/-.001
- Outside Dia. 1.25 in
- Between Grooves (mm) 1.27 in
- Length (In.) 1.625 in
- Accelerated Speed 450 fps
- Steady State Speed 10 fps
- Temp. Range (F) 0 - 185
- Self-Alignment Yes
- Material Delrin
- Required Housing Bore Dia. (In.) 1.25 in
- For Use With Thomson Shafting
Manufacturer Details
- Manufacturer: Thompson
- Condensed Mfg Number: SUPER12
- MPN: SUPER12
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8482105012
- GDS Category Name: Unmounted Linear Ball Bearings
- GDS Family Name: Linear Motion
- GDS Segment Name: Power Transmission
- UNSPSC: 31171506
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Linear bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
