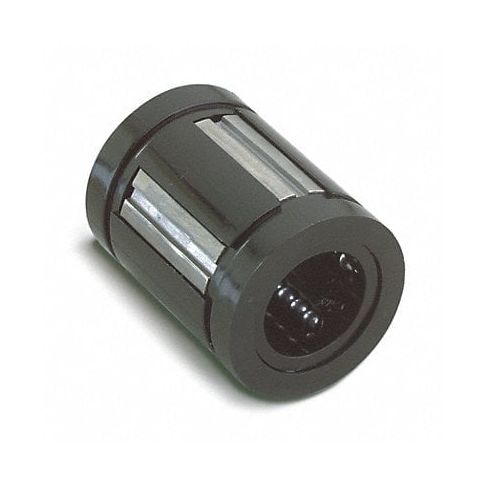

Super Ball Bushing Bore Dia 0.500 In MPN:SUPER8
The super ball bushing is a highly versatile, maintenance-free self-lubricating bearings ideal for rotary or oscillatory movement applications requiring minimal friction and wear-resistance. It has a bore diameter of 0.500 inches, allowing it to easily fit into various shafts or housings. Made from high-quality stainless steel with chromium content that increases its durability against corrosion and oxidation, it's suitable for use in industries such as food processing, chemical, aerospace, automotive, and agriculture machinery among others where precise, long-lasting operation is essential. Its unique design consists of an outer cylindrical layer bonded to an inner ball-bearing raceway that eliminates the need for oil or grease lubrication making it ideal for applications operating under severe environmental conditions, thus providing users with cost savings on maintenance and downtime while delivering smooth, quiet operation for prolonged periods.
Technical Specifications
- Item Super Ball Bushing Bearing
- Type Closed
- Bore Dia. 0.5 in
- Inside Dia. Tolerance +/-.001
- Outside Dia. 0.875 in
- Retention Hole Dia. (mm) 0.14 in
- Retention Hole Location 0.63 in
- Between Grooves (mm) 1.032 in
- Length (In.) 1.25 in
- Accelerated Speed 450 fps
- Steady State Speed 10 fps
- Temp. Range (F) 0 - 185
- Self-Alignment Yes
- Material Delrin
- Required Housing Bore Dia. (In.) 0.875 in
- For Use With Thomson Shafting
Manufacturer Details
- Manufacturer: Thompson
- Condensed Mfg Number: SUPER8
- MPN: SUPER8
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8482105012
- GDS Category Name: Unmounted Linear Ball Bearings
- GDS Family Name: Linear Motion
- GDS Segment Name: Power Transmission
- UNSPSC: 31171506
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Linear bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
