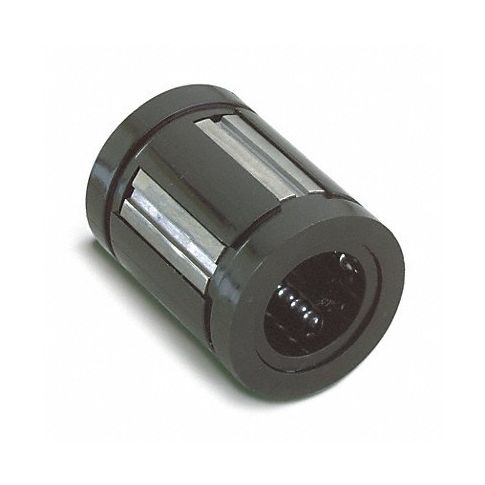

Super Ball Bushing Bore Dia 0.250 In MPN:SUPER4
Super Ball Bushing Bore Dia 0.250 In
Bison's super ball bushing delivers outstanding load distribution & vibration damping properties across multiple axial, radial or angular directions; suitable for applications demanding precise tolerance requirements such as linear motion systems where smooth movement & reduced friction become vital to overall performance, precision equipment needing high accuracy positioning without wear or maintenance while also offering a cost-effective solution over traditional bronze or nylon bushings by eliminating the need for lubrication while still maintaining durability within harsh environments.
Super Ball Bushing®Wear-resistant, engineered polymer retainers and outer sleeves reduce inertia and noise in critical high-speed applications. Offer 3 times the load capacity, or 27 times the travel life of conventional linear bearings.Linear Ball Bushing Bearings• Steady-state speeds to 10 fps; acceleration to 450 fps2 Max. temp.: 185° F Coefficient of friction as low as 0.001 Self-aligning
Technical Specifications
- Item Super Ball Bushing Bearing
- Type Closed
- Bore Dia. 0.25 in
- Inside Dia. Tolerance +/-0.001
- Outside Dia. 0.5 in
- Between Grooves (mm) 0.511 in
- Length (In.) 0.75 in
- Accelerated Speed 450 fps
- Steady State Speed 10 fps
- Temp. Range (F) 0 Degrees to 185 Degrees
- Self-Alignment Yes
- Material Delrin
- Required Housing Bore Dia. (In.) 0.5 in
- For Use With Thomson Shafting
Manufacturer Details
- Manufacturer: Thompson
- Condensed Mfg Number: SUPER4
- MPN: SUPER4
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8482105012
- GDS Category Name: Unmounted Linear Ball Bearings
- GDS Family Name: Linear Motion
- GDS Segment Name: Power Transmission
- UNSPSC: 31171506
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Linear bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 9:52pm UTC
Category: Linear Motion
