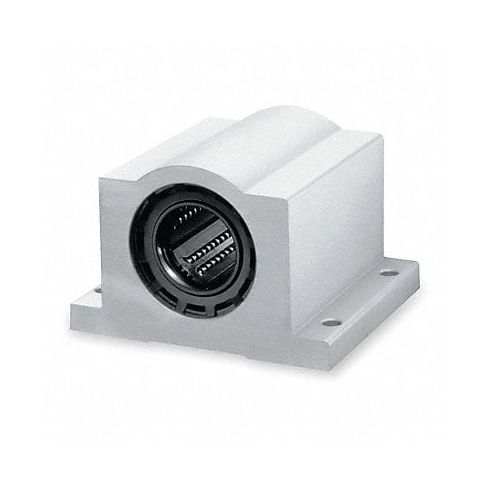

Pillow Block 0.250 In Bore 2.500 In L MPN:TWN4
These Pillow block bearings have a bore diameter of 0.250 (6mm) and an overall length of 2.500 inches (63.5mm). These precision made bearings offer high radial and thrust load capacity and have been specifically engineered to accommodate heavy loads, providing reliable and durable performance even under intense conditions. The housing of the bearings features an integral flange that reduces deflection and improves rigidity when mounting while also acting as a sleeve to protect the bearing from dirt, grime or moisture. Made from premium grade steel with high quality cast iron for added strength and durability; its finish offers excellent resistance against wear and tear due to its heat-treated properties ensuring long term dependable operation even in tough applications. In conclusion, these pillow block bearings offer many benefits including simplicity of installation, ease of alignment, precision guidance and maintenance, making them ideal for heavy duty equipment, machinery or applications requiring solid support that demands constant reliability and performance.
Technical Specifications
- Item Linear Pillow Block Bearing
- Type Closed, Twin
- Bore Dia. (In.) 0.25 in
- Overall Width (In.) 1.63 in
- Overall Length (In.) 2.5 in
- Overall Height (In.) 0.437 in
- Body Width (In.) 1 in
- Mounting Surface to Shaft Center (In.) 0.437 in
- Mounting Hole Center (In.) 2 in
- Mounting Hole Dia. (In.) #6
- Dynamic Load Capacity (Lb.) 120
- Material Aluminum Alloy
- Color Silver
- For Use With Thomson Shaftng
Manufacturer Details
- Manufacturer: Thompson
- Condensed Mfg Number: TWN4
- MPN: TWN4
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Mounted Linear Bearings
- GDS Family Name: Linear Motion
- GDS Segment Name: Power Transmission
- UNSPSC: 31171506
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Linear bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
