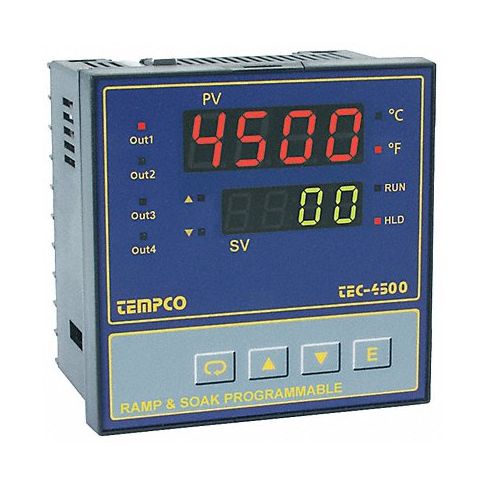

Temp Ctrl 90-264VAC 1/4Din 4-20mA/Relay MPN:TEC58005
Temp Ctrl 90-264VAC 1/4Din 4-20mA/Relay
The temperature control relay is designed to manage and monitor the heating and cooling systems in industrial environments such as HVAC, commercial kitchens or pharmaceutical laboratories. Its versatile voltage range of 90-264VAC allows it to connect seamlessly into diverse electrical systems, while its ability to be set via a 4-20mA input signal ensures precise temperature control with reliability and stability over time. Typical customers span from facility managers to plant engineers or equipment technicians responsible for maintaining optimal working conditions in their respective facilities.
Buy Tempco item #TEC58005 ✯ Made in the USA ✯ and sold by a Veteran-Owned Business.
Technical Specifications
- Item Temperature Controller
- Digital/Analog Digital
- Sensor Type Programmable
- DIN Size 1/4
- Input Voltage 90 to 264V AC
- Output (1) 4 to 20mA
- Temp. Range Dependent on Sensor Type
- Control Mode PID
- Length 3.75 in
- Width 3.75 in
- Depth 2.56 in
- Description/Special Features Dual Red LED Digital Display
- Alarms (1) 2A Relay
- Standards CE, CSA, UL
Manufacturer Details
- Manufacturer: Tempco
- Condensed Mfg Number: TEC58005
- MPN: TEC58005
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9032896040
- GDS Category Name: Temperature Controllers
- GDS Family Name: Temperature Controls
- GDS Segment Name: Electrical
- UNSPSC: 41112205
- UNSPSC Class ID: 22
- UNSPSC Commodity Name: Temperature and heat measuring instruments
- UNSPSC Commodity ID: 05
- UNSPSC Commodity Name: Temperature regulators
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:16pm UTC
Category: Temperature Controls
