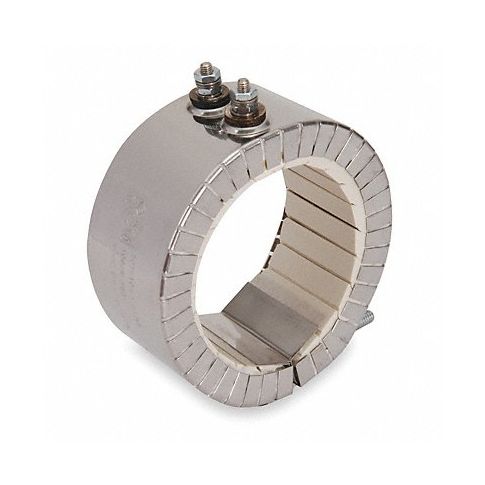

Band Heater 240V 2 in W 1400 Deg F MPN:BCH06433
Band Heater 240V 1400 Deg F 2 in W is a versatile heating solution designed for precision temperature control in industrial applications, offering consistent temperature distribution with minimal heat loss. Its resistance element ensures high efficiency and even heating profile, making it suitable for processes such as curing adhesives, bonding materials, melting plastics or resins, soldering and brazing, as well as thawing frozen items. Additionally, its wide operating voltage range and easy installation make it an ideal choice for both new and retrofit applications in various industries, enhancing productivity and ensuring quality output. In HVAC and refrigeration systems, this band heater can be used to maintain consistent temperatures in ductwork, air handlers, coils, and other components, improving overall performance and energy efficiency.
Technical Specifications
- Item Band Heater
- Heater Voltage 240V AC
- Inside Dia. 8 1/2 in
- Width 2 in
- Material Ceramic Insulated Fiber
- Max. Temp. 1,400 Degrees F
- Terminals Opposite Side
- Termination 10 to 32 Screw Terminal
- Watts 1,550 W
- Watt Density 31 sq in
- Amps 4.79 A
- Width Tolerance +/-1/4 in
- Features Built In 1/4 in Thick Ceramic Fiber Insulating Blanket
Manufacturer Details
- Manufacturer: Tempco
- Condensed Mfg Number: BCH06433
- MPN: BCH06433
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8419899585
- GDS Category Name: Band Heaters
- GDS Family Name: Electric Process Heaters and Accessories
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101829
- UNSPSC Class ID: 18
- UNSPSC Commodity Name: Heating equipment and parts and accessories
- UNSPSC Commodity ID: 29
- UNSPSC Commodity Name: Band heaters
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
