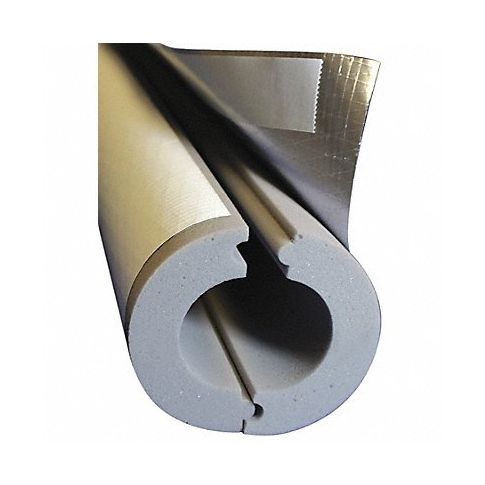

Pipe Ins. Melamine 1-3/8 in ID 4 ft. MPN:0179-0125CT100-PF-0910-01
Free Shipping
In Stock
Melamine pipe insulation for use with 3-1/8 pipes, having 4 feet length, this model displays superior thermal efficiency due to its well-known excellent R-value ratings. This lightweight product prevents thermal energy from dissipation through the walls of hot and cold pipes in large scale building projects like multi-tenant housing complexes or university campuses, enhancing occupant's comfort levels by providing consistent temperature distribution across interiors; as well it can be applied during installations for hydronic heating and cooling systems which require noise control dampening in line with sound reduction codes thus becoming an integral component on construction sites frequented by mechanical engineers, plumbing contractors or facility managers responsible for retrofitting upgrades seeking energy cost savings while conforming to eco-friendly design considerations.
Technical Specifications
- Item Pipe Insulation
- Insulation Body Material Melamine Foam
- Type - Pipe Insulation Hinged with Self Sealing Lap
- Wall Thickness - Insulation 1 in
- Insulation Length 4 ft
- Fits Pipe Size 1 in
- Fits Tube Size 1 3/8 in
- Insulation Nominal I.D. 1 3/8 in
- Insulation Temp. Range -40 Degrees F to 350 Degrees F
- Insulation Approx. R Value 5.82
- Insulation Approx. K Value 0.25
- Pipe Insulation Item Pipe Insulation
- Color White
- Includes Factory Laminated ASJ (All Service Jacket) Paper/Foil/Scrim Vapor Barrier Jacket
- Standards ASTM C1410 Cellular Melamine, ASTM E84 25/50 Rating
Manufacturer Details
- Manufacturer: Techlite Insulation
- Condensed Mfg Number: 01790125CT100PF091001
- MPN: 0179-0125CT100-PF-0910-01
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 3925900000
- GDS Category Name: Pipe Insulation
- GDS Family Name: Insulation
- GDS Segment Name: Plumbing
- UNSPSC: 30141505
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Thermal insulation
- UNSPSC Commodity ID: 05
- UNSPSC Commodity Name: Thermal insulation sleeving
- UNSPSC Family ID: 14
- UNSPSC Family Name: Insulation
- UNSPSC Segment ID: 30
- UNSPSC Segment Name: Structures and Building and Construction and Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
