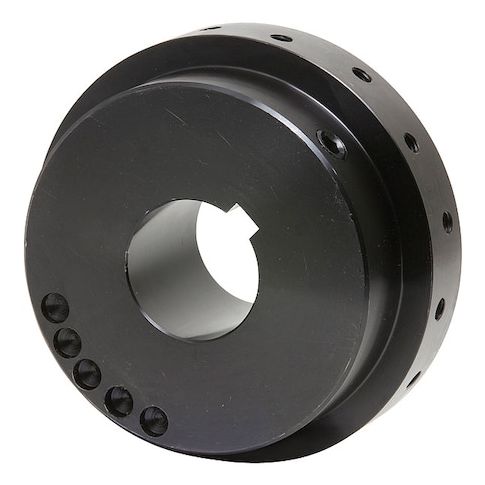

Dura-Flex Tire Coupling Hub, WE3, Bore 1-1/4" MPN:WE3H114
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5684901
Dura-Flex Tire Coupling Hub, WE3, Bore 1-1/4"
The Dura-Flex Tire Coupling Hub WE3 is a high-performance solution for connecting power transmission components in demanding applications. Its ability to handle angular misalignment of up to 4 degrees makes it ideal for use in systems where precise alignment is challenging. With a maximum torque of 365 in-lb and a horsepower rating of 0.58 hp at 100 RPM, this hub is suitable for applications requiring moderate power transmission. Its compact size and lightweight design make it suitable for use in a variety of industries, including aerospace, industrial automation, and material handling. It ships in just one day.
Top product features:
- Angular misalignment of 4 degrees allows for flexibility in installation and operation.
- Coupling size WE3 enables the hub to accommodate specific tire sizes and applications.
- Maximum speed of 7,500 RPM supports high-performance applications and equipment operation.
Top product applications:
- Heavy Duty Agricultural Equipment
- Industrial Power Generation Systems
- Oil and Gas Exploration Equipment
Tire Coupling Hub, Angular Misalignment 4 Degrees , Coupling Size WE3, Horsepower @ 100 RPM 0.58 hp, Maximum Speed 7,500 RPM, Bore Type Round Keyed, For Bushing Size Not Applicable, Maximum Torque 365 in-lb, Keyway Depth 1/8 in, Keyway Width 1/4 in, Hub Diameter 2.32 in, Parallel Misalignment 0.0625 in, Bore Diameter 1 1/4 in, Screw Thread Size 1/4 In.-20, Set Screw Location Over Keyway, System of Measurement Inch, Torsional Stiffness 4,710 in-lb/rad, Length through Bore 1 1/2 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.30
- Package Width: 3.00
- Package Height: 1.80
- Package Weight: 0.95
Product info last updated on February 4, 2026 1:55am UTC
Category: Bearings, V-belts and Power Transmission Equipment
