Dura-Flex Taper Lock Coupling Hub, WE30, Max 2-1/8" MPN:WE30HTL
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5631586

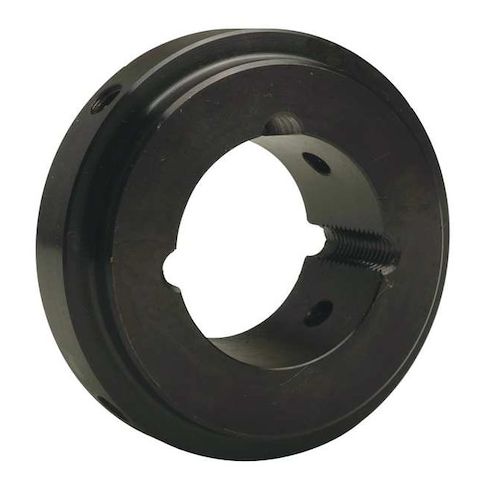

Dura-Flex Taper Lock Coupling Hub, WE30, Max 2-1/8"
The Dura-Flex Taper Lock Coupling Hub, WE30, is a high-performance coupling solution designed for demanding industrial applications. With a maximum speed of 5,800 RPM and a horsepower rating of 5.8 hp at 100 RPM, this hub is ideal for use in power transmission systems where high torque and speed are required. The angular misalignment of 3 degrees and parallel misalignment of 0.09375 inches make it suitable for applications where slight deviations in alignment are expected. Suitable for use in industries such as manufacturing, mining, and material handling, this hub provides reliable and efficient power transmission in harsh environments.
Top product features:
- Angular misalignment up to 3 degrees
- Maximum speed of 5,800 RPM
- Maximum torque of 3,650 in-lb
Top product applications:
- Pumps and hydraulic systems
- Conveyor belts and material handling systems
- Power transmission and machinery applications
Taper Lock Tire Coupling Hub, Angular Misalignment 3 Degrees , Coupling Size WE30, Horsepower @ 100 RPM 5.8 hp, Maximum Speed 5,800 RPM, Bore Type Taper Lock Bushing, For Bushing Size TL2012, Maximum Torque 3,650 in-lb, Keyway Depth Not Applicable, Keyway Width Not Applicable, Hub Diameter 5.42 in, Parallel Misalignment 0.09375 in, Bore Diameter Not Applicable, Screw Thread Size Not Applicable, Set Screw Location Not Applicable, System of Measurement Inch, Torsional Stiffness 42,200 in-lb/rad
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 6.00
- Package Height: 6.00
- Package Weight: 5.00
Product info last updated on February 14, 2026 12:08am UTC
Category: Bearings, V-belts and Power Transmission Equipment
