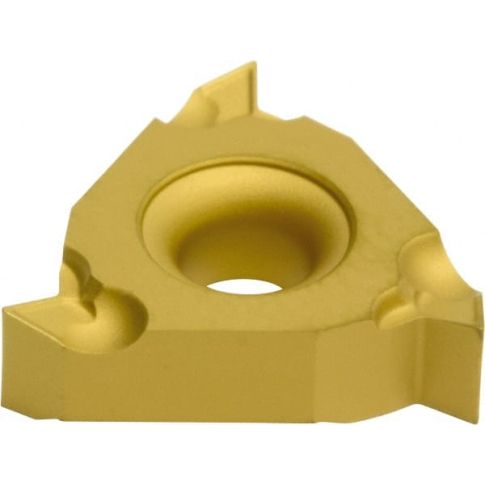

Laydown Threading Insert: TME1530R AC225, Solid Carbide MPN:1C25AET
Laydown Threading Insert: TME1530R AC225, Solid Carbide
Laydown Threading Insert: TME1530R AC225, Solid Carbide Al2O3 Finish, Right Hand External Partial Profile 60degree Thread, 16-8 TPI, 3/8" Inscribed Circle, 0.143" Thick
Product Information
- : 1C25AET
- Coating Process: CVD
- Coating/Finish: Coated
- Corner Radius (Decimal Inch): 0.0080
- Hole Diameter (Decimal Inch): 0.1500
- Included Angle: 60
- Inscribed Circle (Decimal Inch): 0.3750
- Inscribed Circle (Inch): 3/8
- Insert Hand: Right Hand
- Insert Material: Solid Carbide
- Insert Size Code: 1530
- Insert Style: TME
- Manufacturer Grade: AC225
- Pitch (mm): 1.50 to 3.00
- Primary Workpiece Material: Stainless Steel; Steel
- Primary Workpiece Material Code: M; P
- Thickness (Decimal Inch - 4 Decimals): 0.1430
- Thread Type: External
- Threads Per Inch: 16-8
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: JP, Japan
- TAA Compliant: Yes
- UNSPSC: 23291804
- CA Restricted (Prop 65): Unknown
- Package Length: 3.50
- Package Width: 1.50
- Package Height: 0.44
- Package Weight: 0.01
- Prohibited States: AK,HI,PR
Product info last updated on April 4, 2024 3:38am UTC
Category: Threading and Thread Mill Inserts
