Tube Clamp 1.69in H 316 SS Size 39/64in MPN:SP-215-ACT-DP-AS-U-W5-K-642012
SKU
226-CXO-49AG06

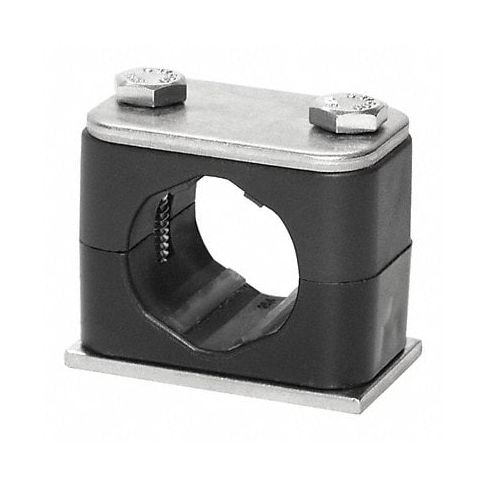

Tube Clamp 1.69in H 316 SS Size 39/64in
STAUFF Tube Clamp 1.69in H 316 SS Size 39/64in is a high-quality anti-corrosion weld mount clamp that is designed for secure installment of pipes. The product's flame-retardant polypropylene construction, combined with its self-draining design featuring drainage channels, provides water resistance against oil, rain, and seawater, making it suitable for various applications. With a max pressure of 2000PSI and 15mm tube size, this stainless steel clamp is perfect for industrial use in marine, chemical processing, food & beverage, and other high-pressure systems requiring secure piping.
Top product features:
- Flame-retardant polypropylene construction for resistance against oil, rain, and seawater
- Self-draining design with drainage channels for water dispersal and avoidance of water accumulation
- Quick installation that requires less time compared to alternative clamp designs
Top product applications:
- High-pressure piping systems in industrial settings that require secure connection of pipes to maintain sealing and prevent leakage
- Offshore oil drilling platforms to transport chemicals, fuel or water with corrosion resistance capabilities
- Chemical processing plants for handling aggressive chemicals, acids, and solvents where pipe connections need to be secured and durable.
With a clamp body that features flame-retardant polypropylene construction, this STAUFF tube clamp resists oil, rain, and seawater. The self-draining design has drainage channels to help aid in water dispersal and avoid water accumulation. Clamp installs in less time compared to alternative clamp designs.
Technical Specifications
- Item Tube Clamp
- Type Anti-Corrosion Weld Mount Standard Clamp
- Tube Size 15 mm
- Material 316 Stainless Steel
- Max. Pressure (PSI) 2000
- Temp. Range (F) -13 Degrees to 194 Degrees
- Length 1.65 in
- Width 1.65 in
- Height 1.69 in
- Hardware Material 316 Stainless Steel
- Insert Material Polypropylene
- Depth 1.18 in
- Includes Clamp Set, Cover Plate And Two Hex Head Bolts, Weld Plate
- Standards API RP 552, DIN 3015-1, NACE SP 0108-2008
- Package Quantity 1
Manufacturer Details
- Manufacturer: Stauff
- Condensed Mfg Number: SP215ACTDPASUW5K642012
- MPN: SP-215-ACT-DP-AS-U-W5-K-642012
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: DE
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 7326908630
- GDS Category Name: Tube Clamps
- GDS Family Name: Pipe and Tubing
- GDS Segment Name: Plumbing
- UNSPSC: 31162906
- UNSPSC Class ID: 29
- UNSPSC Commodity Name: Clamps
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Hose or pipe clamps
- UNSPSC Family ID: 16
- UNSPSC Family Name: Hardware
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:44am UTC
Category: Pipe and Tubing
