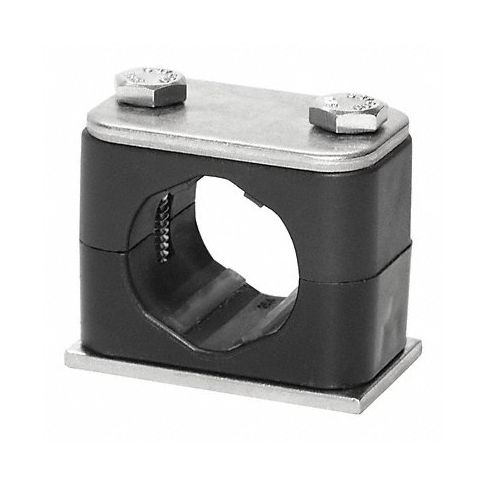

Tube Clamp 1.46in L 316 SS Size 15/64in MPN:SP-106A-ACT-DP-AS-U-W5-K-642012
Tube clamps made from 316 stainless steel, specifically designed to fit tubes with a diameter of 0.241in or 15/64in. This particular Tube Clamp is suitable for several industries due to its versatility such as; plumbing, hydraulics, pneumatic, heating and cooling applications among others. A standard clamp which applies pressure from both inside the tube via a bolt tightening action securing it in place while preventing vibrations or loosening over time. These clamps provide reliability by avoiding stress points in piping systems when attaching tubes and fitting onto multiple materials including steel, aluminum, fiberglass or polypropylene. The 316 stainless-steel construction guarantees the durability of the clamp offering longevity even when dealing with aggressive chemical substances, thus providing long term solutions for tube connections in many different industries.
Technical Specifications
- Item Tube Clamp
- Type Anti-Corrosion Weld Mount Standard Clamp
- Tube Size 6 mm
- Material 316 Stainless Steel
- Max. Pressure (PSI) 2000
- Temp. Range (F) -13 Degrees to 194 Degrees
- Length 1.46 in
- Width 1.46 in
- Height 1.46 in
- Hardware Material 316 Stainless Steel
- Insert Material Polypropylene
- Depth 1.18 in
- Includes Clamp Set, Cover Plate And Two Hex Head Bolts, Weld Plate
- Standards API RP 552, DIN 3015-1, NACE SP 0108-2008
- Package Quantity 1
Manufacturer Details
- Manufacturer: Stauff
- Condensed Mfg Number: SP106AACTDPASUW5K642012
- MPN: SP-106A-ACT-DP-AS-U-W5-K-642012
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: DE
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 7326908630
- GDS Category Name: Tube Clamps
- GDS Family Name: Pipe and Tubing
- GDS Segment Name: Plumbing
- UNSPSC: 31162906
- UNSPSC Class ID: 29
- UNSPSC Commodity Name: Clamps
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Hose or pipe clamps
- UNSPSC Family ID: 16
- UNSPSC Family Name: Hardware
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
