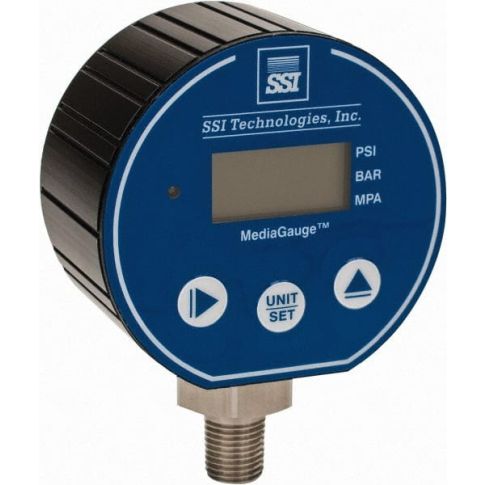

Pressure Gauge: 3" Dial, 0 to 5 psi, 1/4" Thread, NPT, Lower Mount MPN:MG-5-A-MD-R
Pressure Gauge: 3" Dial, 0 to 5 psi, 1/4" Thread, NPT, Lower Mount
The versatile 3 dial pressure gauge with a maximum operating pressure of 5 psi and working temperature range between -10F to 180F (-299.9C) ensures accurate measurements in diverse applications such as HVAC systems, hydraulics, process control and various automotive uses. This gauge has a 1/4 NPT thread size for simple installation and low mount type design for compactness. The pressure gauge's ease of use in various industries highlights its importance within the wide range of pressure & temperature measuring instruments used to keep machinery and systems performing efficiently.
Pressure Gauge: 3" Dial, 0 to 5 psi, 1/4" Thread, NPT, Lower Mount Digital Pressure Gauge, Acrylonitrile Butadiene Styrene Case, Stainless Steel Wetted Parts, 0.25% of Scale Accuracy
Product Information
- : MG-5-A-MD-R
- Accuracy (%): 0.25
- Case Material: ABS
- Dial Diameter (Inch): 3
- Dial Type: Digital
- For Use With: Air
- Gauge Type: Digital Pressure Gauge
- Liquid Filled: No
- Maximum Pressure (Psi - 2 Decimals): 5
- Maximum Scale Measurement: 5psi
- Maximum Working Temperature (F): 140
- Maximum Working Temprature (Deg C): 60
- Minimum Pressure (Psi): 0.00
- Minimum Scale Measurement: 0psi
- Minimum Working Temperature (Deg C): -10
- Minimum Working Temperature (Deg F): 14
- Mount Type: Lower
- Scale Measurement Ranges: 0 to 5
- Series: MG-9V
- Standards: NEMA 4X
- Thread Size: 1/4
- Thread Type: NPT
- Wetted Parts Material: Stainless Steel
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: TW, Taiwan
- TAA Compliant: Yes
- UNSPSC: 41112412
- CA Restricted (Prop 65): Unknown
- Package Length: 4.00
- Package Width: 5.50
- Package Height: 3.00
- Package Weight: 0.50
- Prohibited States: AK,HI,PR
Product info last updated on July 1, 2024 12:25am UTC
Category: Pressure and Vacuum Gauges and Instruments
