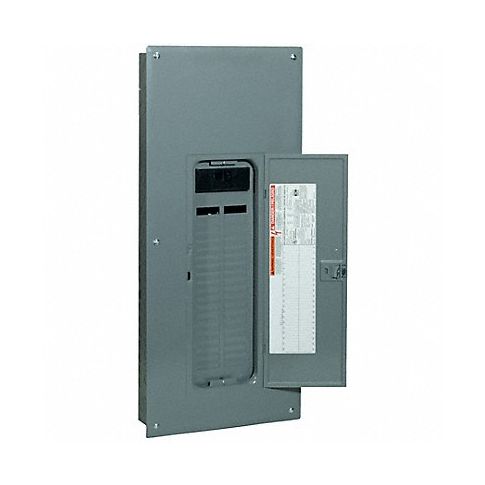

Load Centers 150A 120/240VAC MPN:QO142M150PC

These Square D main breaker load centers distribute the main supply of power and have a main breaker to protect the circuit from overcurrents. They can be converted to a main lug load center with a required lug kit, so they can be used when a remote panel is desired. These load centers have a neutral bar on either side of the bus bars, so compatible AFCI (arc fault circuit interrupter) or GFCI (ground fault circuit interrupter) breakers can plug directly onto the bus and neutral bars without requiring a pigtail connection. These load centers are used with QO series breakers. They can be used at the service entrance in residential, commercial, and industrial applications.

Technical Specifications

• Item Load Center
• Number of Spaces 42
• Amps 150 A
• Voltage 120/240V AC
• Circuit Breaker Type QO
• Included Enclosure Cover Combination Flush/Surface Cover
• Main Circuit Breaker or Main Lug Main Circuit Breaker
• Max. No. of Tandem Breakers 0
• Phase 1
• Height 38 in
• Width 14 1/4 in
• For Use With Square D QO Circuit Breakers
• Bus Material Tin Plated Copper
• Short Circuit Current Rating 22 kA
• Enclosure NEMA Rating 1
• Recommended Flush Cover Included
• Recommended Ground Bar Kit Included
• Recommended Surface Cover Included
• Color Gray
• Enclosure Material Welded Sheet Steel
• Enclosure Surface Finish Baked Enamel Gray
• Max. Operating Temp. 104 Degrees F
• Min. Operating Temp. 23 Degrees F
• Special Features Mercury Free
• Location Indoors
• Standards RoHS Compliant, UL Listed

Manufacturer Details

• Manufacturer: Square D
• Condensed Mfg Number: QO142M150PC
• MPN: QO142M150PC

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: Y
• CA Prop 65 Warning Msg Scenario: 7

Classification Details

• Harmonization Code: 8537109150
• GDS Category Name: Load Centers and Panelboards
• GDS Family Name: Distribution
• GDS Segment Name: Electrical
• UNSPSC: 39121101
• UNSPSC Class ID: 11
• UNSPSC Commodity Name: Distribution and control centers and accessories
• UNSPSC Commodity ID: 01
• UNSPSC Commodity Name: Load centers
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
