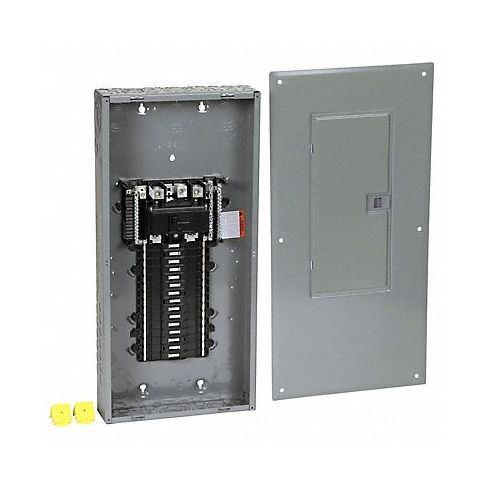

Load Centers 200A 120/240VAC MPN:QO130M200PC
Introducing Square D Load Centers 200A 120/240VAC, designed to provide superior protection and distribution of power in your home or office. These load centers come with a main breaker to protect circuits from overcurrents, ensuring that you never have to worry about electrical issues again. Their unique design allows you to convert them into a main lug load center using a required lug kit, making them perfect for use in remote panel installations. The neutral bar on either side of the bus bars enables the direct plugging of compatible AFCI or GFCI breakers without requiring any pigtail connections. These load centers are built to work with QO series breakers and can be used at the service entrance in various applications such as residential, commercial, and industrial settings. Invest in Square D Load Centers today and enjoy the peace of mind that comes with having a reliable source of power!
Top product features:
- Main breaker to protect circuits from overcurrents
- Can be converted to a main lug load center with a required lug kit
- Compatible AFCI or GFCI breakers can plug directly onto the bus and neutral bars without requiring a pigtail connection
Top product applications:
- Use in residential settings as main service entrance wiring device
- Use in commercial settings as an electric panel for distributing power to multiple circuits
- Use in industrial settings as a main breaker to protect equipment from overloads
Technical Specifications
- Item Load Center
- Number of Spaces 30
- Amps 200 A
- Voltage 120/240V AC
- Circuit Breaker Type QO
- Included Enclosure Cover Combination Flush/Surface Cover
- Main Circuit Breaker or Main Lug Main Circuit Breaker
- Max. No. of Tandem Breakers 0
- Phase 1
- Height 29 7/8 in
- Width 14 1/4 in
- Depth 3 3/4 in
- For Use With Square D QO Circuit Breakers
- Bus Material Tin Plated Copper
- Short Circuit Current Rating 22 kA
- Enclosure NEMA Rating 1
- Recommended Flush Cover Included
- Recommended Ground Bar Kit Included
- Recommended Surface Cover Included
- Color Gray
- Enclosure Material Welded Sheet Steel
- Enclosure Surface Finish Baked Enamel Gray
- Max. Operating Temp. 104 Degrees F
- Min. Operating Temp. 23 Degrees F
- Special Features Mercury Free
- Location Indoors
- Standards RoHS Compliant, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QO130M200PC
- MPN: QO130M200PC
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 8537109150
- GDS Category Name: Load Centers and Panelboards
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121101
- UNSPSC Class ID: 11
- UNSPSC Commodity Name: Distribution and control centers and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Load centers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
