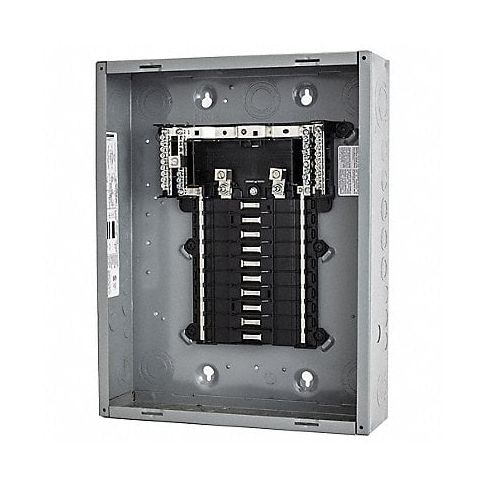

Load Centers 125A 120/240VAC MPN:QO116L125PG
The Square D Load Centers are ideal for distribution of power in various settings, from residential homes to commercial establishments. Featuring 16 spaces with 125 Amp capacity and 120/240VAC rating, these load centers offer efficient solutions to distribute main breaker circuits when all slots are full or a remote panel is desired. Equipped with neutral bars on either side of the bus bars, these load centers allow for convenient use of compatible AFCI or GFCI breakers without requiring any additional connections. The load centers provide protection from overcurrents and are perfect for applications ranging from 15 to 40 Amps, making them a versatile choice in multiple settings. Installation is quick and simple with the push-in lugs that require no screws, saving you time while ensuring optimal safety. The Square D Load Centers deliver reliable power distribution tailored for your specific needs.
Top product features:
- Neutral bars on both sides for AFCI/GFCI breaker usage
- 16 spaces for distributing main breaker circuits
- Push-in lugs that require no screws for quick installation
Top product applications:
- Use in residences where multiple circuits need to be distributed from the main breaker load center
- Installation as a remote panel for easier access and control of circuit breakers
- Use in industrial settings for power distribution and protection of equipment and machinery
Technical Specifications
- Item Load Center
- Number of Spaces 16
- Amps 125 A
- Voltage 120/240V AC
- Circuit Breaker Type QO
- Included Enclosure Cover Order Separately
- Main Circuit Breaker or Main Lug Main Lug
- Max. No. of Tandem Breakers 8
- Phase 1
- Height 20 15/16 in
- Width 14 1/4 in
- Depth 3 3/4 in
- For Use With Square D QO Circuit Breakers
- Short Circuit Current Rating 65 kA
- Enclosure NEMA Rating 1
- Recommended Ground Bar Kit Included
- Color Gray
- Max. Operating Temp. 104 Degrees F
- Min. Operating Temp. 23 Degrees F
- Special Features Mercury Free
- Location Indoors
- Standards RoHS Compliant, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QO116L125PG
- MPN: QO116L125PG
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8537109150
- GDS Category Name: Load Centers and Panelboards
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121101
- UNSPSC Class ID: 11
- UNSPSC Commodity Name: Distribution and control centers and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Load centers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: CA HI AK PR
