H2658 Definit Prpose Cntactr 208/240VAC 30A 4P MPN:8910DPA34V09
SKU
226-CXO-5KAK8
H2658 Definit Prpose Cntactr 208/240VAC 30A 4P

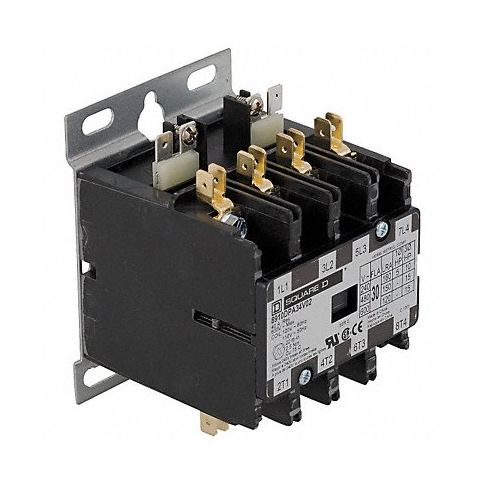

This Square D™ Magnetic Definite Purpose Contactor is an open style, 4-pole contactor. It has double-break contacts to help improve safety. Auxiliary contact modules snap onto either side for fast expansion. The combination of quick-connect terminals and binder head screws along with the industry-standard mounting help provide easy wiring and installation. A Type-1 enclosure and DIN rail-mounting bracket (sold separately) may help reduce installation costs. 208/240VAC coil volts. 30A (inductive) and 40A (resistive). 600V max. Mechanical life is approximately 500,000 operations. Suitable for heating, air conditioning, and refrigeration applications.
Technical Specifications
- Item Definite Purpose Contactor
- Number of Poles 4
- Full Load Amps-Resistive 40
- Full Load Amps-Inductive 30
- Coil Volts 208/240V AC
- HP @ 1 Phase - 120V 2 hp
- HP @ 1 Phase - 240V 5 hp
- HP @ 3 Phase - 240V 10 hp
- HP @ 3 Phase - 480V 15 hp
- HP @ 3 Phase - 575V 15 hp
- Height 4.0 in
- Width 3.17 in
- Depth 3.11 in
- Enclosure NEMA Rating No Enclosure
- Hz 50/60
- Reversing No
- Series Standard
- Includes Quick Connect Terminal
- Standards CE, CSA, UL
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: 8910DPA34V09
- MPN: 8910DPA34V09
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536490065
- GDS Category Name: Definite Purpose Magnetic Contactors
- GDS Family Name: Starters and Contactors
- GDS Segment Name: Electrical
- UNSPSC: 39121529
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 29
- UNSPSC Commodity Name: Contactors
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
