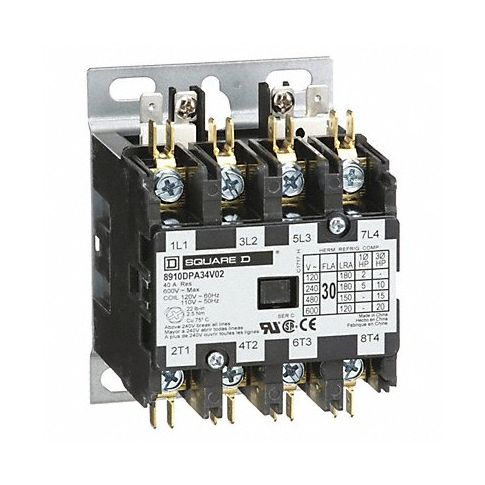

H2658 Definit Prpose Cntctr 120VAC 30A 4P Open MPN:8910DPA34V02
The Square D Magnetic Definite Purpose Contactor is a reliable solution for controlling inductive and resistive loads in various industrial settings such as HVAC systems, refrigeration units, and pump control. Its double-break contacts help enhance safety while reducing the risk of contact bouncing. The device features quick-connect terminals, a DIN rail-mounting bracket (sold separately), and Type-1 enclosure to streamline installation. The open style, 4-pole design allows for flexible expansion with snap-on auxiliary contact modules on either side. With its robust construction, this contactor can withstand high cycle rates in harsh environments, making it a cost-effective solution for many applications. Order the Square D Magnetic Definite Purpose Contactor and enjoy reliable control of your loads.
Top product features:
- Double-break contacts for improved safety
- Open style, 4-pole design for flexible expansion
- Quick-connect terminals and binder head screws for easy wiring and installation
Top product applications:
- Heating systems control
- Air conditioning systems control
- Refrigeration systems control
Technical Specifications
- Item Definite Purpose Contactor
- Number of Poles 4
- Full Load Amps-Resistive 40
- Full Load Amps-Inductive 30
- Coil Volts 120V AC
- HP @ 1 Phase - 120V 2 hp
- HP @ 1 Phase - 240V 5 hp
- HP @ 3 Phase - 240V 10 hp
- HP @ 3 Phase - 480V 15 hp
- HP @ 3 Phase - 575V 15 hp
- Height 4.0 in
- Width 3.17 in
- Depth 3.11 in
- Enclosure NEMA Rating No Enclosure
- Hz 50/60
- Reversing No
- Series Standard
- Includes Quick Connect Terminal
- Standards CE, CSA, UL
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: 8910DPA34V02
- MPN: 8910DPA34V02
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536490065
- GDS Category Name: Definite Purpose Magnetic Contactors
- GDS Family Name: Starters and Contactors
- GDS Segment Name: Electrical
- UNSPSC: 39121529
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 29
- UNSPSC Commodity Name: Contactors
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on October 26, 2023 11:56pm UTC Category: Starters and Contactors
