H2654 Definit Prpose Cntactr 208/240VAC 30A 3P MPN:8910DPA33V09
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXO-5KAK3
H2654 Definit Prpose Cntactr 208/240VAC 30A 3P
The Square D Definitive Purpose Contactor is an essential component for controlling electrical loads in various applications like HVAC, refrigeration, and lighting. With its robust design, this contactor ensures reliable and controlled switching for a wide range of electrical circuits. Its double-break contacts offer improved safety, while the expandable auxiliary contact modules enable easy installation and configuration to suit specific needs. Furthermore, the DIN rail-mounting bracket allows for streamlined and cost-efficient installation. The Square D Definitive Purpose Contactor delivers reliable performance, flexibility, and value, making it a trusted choice for electrical contractors and installers.
Top product features:
- Double-break contacts for improved safety
- Expandable auxiliary contact modules for easy installation and configuration
- Quick-connect terminals and binder head screws for easy wiring and installation
Top product applications:
- Controlling lighting systems in commercial buildings
- Regulating air conditioning units in residential homes
- Starting and stopping motors in industrial machinery

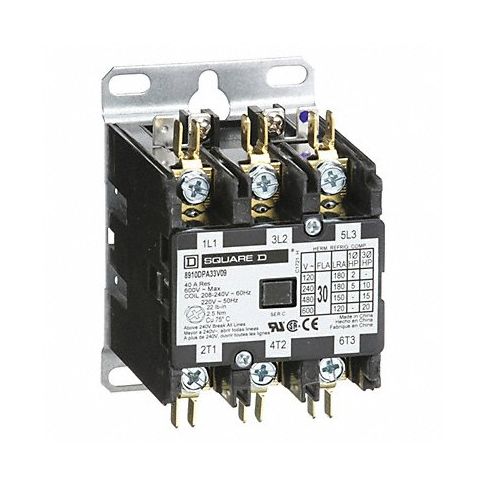

This Square D™ Magnetic Definite Purpose Contactor is an open style, 3-pole contactor. It has double-break contacts to help improve safety. Auxiliary contact modules snap onto either side for fast expansion. The combination of quick-connect terminals and binder head screws along with the industry-standard mounting help provide easy wiring and installation. A Type-1 enclosure and DIN rail-mounting bracket (sold separately) may help reduce installation costs. 208/240VAC coil volts. 30A (inductive) and 40A (resistive). 600V max. Mechanical life is approximately 500,000 operations. Suitable for heating, air conditioning, and refrigeration applications.
Technical Specifications
- Item Definite Purpose Contactor
- Number of Poles 3
- Full Load Amps-Resistive 40
- Full Load Amps-Inductive 30
- Coil Volts 208/240V AC
- HP @ 1 Phase - 120V 2 hp
- HP @ 1 Phase - 240V 5 hp
- HP @ 3 Phase - 240V 10 hp
- HP @ 3 Phase - 480V 15 hp
- HP @ 3 Phase - 575V 15 hp
- Height 4.0 in
- Width 2.5 in
- Depth 3.12 in
- Enclosure NEMA Rating No Enclosure
- Hz 50/60
- Reversing No
- Series Standard
- Includes Quick Connect Terminal
- Standards CE, CSA, UL
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: 8910DPA33V09
- MPN: 8910DPA33V09
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536904000
- GDS Category Name: Definite Purpose Magnetic Contactors
- GDS Family Name: Starters and Contactors
- GDS Segment Name: Electrical
- UNSPSC: 39121529
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 29
- UNSPSC Commodity Name: Contactors
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
