H2650 Dfinit Prpose Cntactr 277VAC 30A 2P Open MPN:8910DPA32V04
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXO-5KAJ6

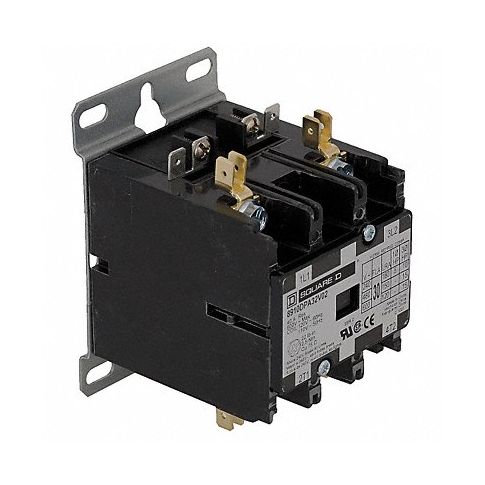

H2650 Dfinit Prpose Cntactr 277VAC 30A 2P Open
Introducing Square D's H2650 Definite Purpose Contactor - an essential component for any heating, air conditioning, or refrigeration system. With its double-break contacts that provide added safety, this contactor ensures reliable performance and control. The open style design simplifies mounting, while the quick-connect terminals make wiring a breeze. Auxiliary contact modules snap onto either side for easy expansion, saving you time and effort. With a Type-1 enclosure, DIN rail-mounting bracket (available separately), and suitability for 277VAC coils, this product provides versatility and cost-efficiency in one package. Ideal for use in commercial and industrial applications, the H2650 Contacto
Top product features:
- Double-break contacts for added safety
- Open style design for easy mounting
- Quick-connect terminals and binder head screws for simple wiring The Square D H2650 Definite Purpose Contacto
Top product applications:
- HVAC systems for residential and commercial buildings
- Refrigeration units in supermarkets or warehouses
- Air conditioning units in offices or public spaces The Square D H2650 Definite Purpose Contacto
This Square D™ Magnetic Definite Purpose Contactor is an open style, 2-pole contactor. It has double-break contacts to help improve safety. Auxiliary contact modules snap onto either side for fast expansion. The combination of quick-connect terminals and binder head screws along with the industry-standard mounting help provide easy wiring and installation. A Type-1 enclosure and DIN rail-mounting bracket (sold separately) may help reduce installation costs. 277VAC coil volts. 30A (inductive) and 40A (resistive). 600V max. Mechanical life is approximately 500,000 operations. Suitable for heating, air conditioning, and refrigeration applications.
Technical Specifications
- Item Definite Purpose Contactor
- Number of Poles 2
- Full Load Amps-Resistive 40
- Full Load Amps-Inductive 30
- Coil Volts 277V AC
- HP @ 1 Phase - 120V 2 hp
- HP @ 1 Phase - 240V 5 hp
- Height 4.0 in
- Width 2.5 in
- Depth 3.12 in
- Enclosure NEMA Rating No Enclosure
- Hz 50/60
- Reversing No
- Series Standard
- Includes Quick Connect Terminal
- Standards CE, CSA, UL
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: 8910DPA32V04
- MPN: 8910DPA32V04
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536490065
- GDS Category Name: Definite Purpose Magnetic Contactors
- GDS Family Name: Starters and Contactors
- GDS Segment Name: Electrical
- UNSPSC: 39121529
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 29
- UNSPSC Commodity Name: Contactors
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B00CON9VVK
Product info last updated on October 25, 2023 10:36am UTC Category: Starters and Contactors
