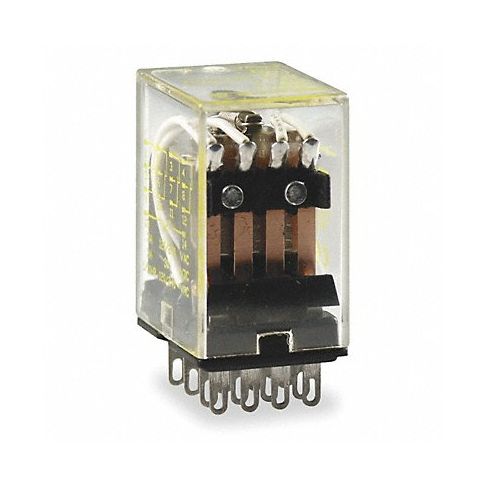

H8059 Gen Purpose Relay 14 Pin Square 24VDC MPN:8501RSD14V53

Technical Specifications

• Item - Relay General Purpose Relay
• Coil Volts 24V DC
• AC Contact Rating - Relay 5A @ 240V
• DC Contact Rating - Relay 5A @ 28V
• Base Type - Plug In Relay Square
• Number of Pins - Relay 14
• Contact Form - Relay 4PDT
• Mounting - Relay Plug In
• Socket Code - Relay G
• Power Consumption - Relay 0.9 W
• Contact Material Silver Cadmium Oxide
• Status Indicator No
• Push To Test No
• Body Height - Relay 1.4 in
• Body Width - Relay 0.83 in
• Body Depth - Relay 1.1 in
• Overall Height - Relay 1.65 in
• HP @ 120V Not Rated
• HP @ 240V Not Rated
• Features 1, 3, or 5A versions, 4PDT, Complete Socket Line, Horsepower Rated, AC or DC Operation, Manual Operator/Pilot Light Options
• Standards CSA Certified, UL Listed

Manufacturer Details

• Manufacturer: Schneider
• Condensed Mfg Number: 8501RSD14V53
• MPN: 8501RSD14V53

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: CN
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8536490080
• GDS Category Name: Plug-In Relays
• GDS Family Name: Relays
• GDS Segment Name: Electrical
• UNSPSC: 39121515
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Switches and controls and relays and accessories
• UNSPSC Commodity ID: 15
• UNSPSC Commodity Name: General purpose relays
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
