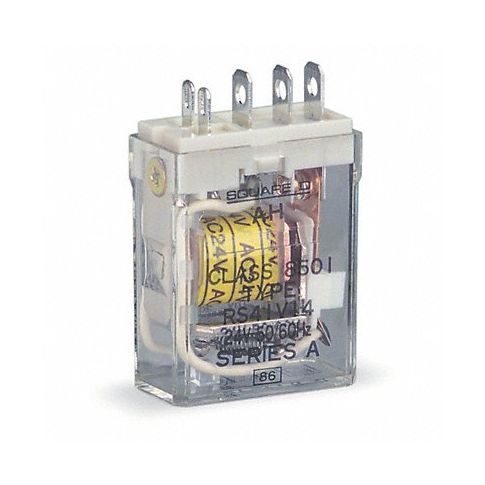

H8078 Gen Purpose Relay 5 Pin Square 24VAC MPN:8501RS41V14

Technical Specifications

• Item - Relay General Purpose Relay
• Coil Volts 24V AC
• AC Contact Rating - Relay 12A @ 240V, 15A @ 120V
• DC Contact Rating - Relay 15A @ 28V
• Base Type - Plug In Relay Square
• Number of Pins - Relay 5
• Contact Form - Relay SPDT
• Mounting - Relay Plug In
• Socket Code - Relay L
• Power Consumption - Relay 1.6 VA
• Contact Material Silver Cadmium Oxide
• Status Indicator No
• Push To Test No
• Body Height - Relay 1.37 in
• Body Width - Relay 0.55 in
• Body Depth - Relay 1.07 in
• Overall Height - Relay 1.65 in
• HP @ 120V 1/10 hp
• HP @ 240V 1/10 hp
• Features SPDT through 4PDT, AC or DC operated, Horsepower rated, Socket compatible, Manual operator/ green LED pilot light options, Silver tin oxide contacts
• Standards CSA Certified, UL Listed

Manufacturer Details

• Manufacturer: Schneider
• Condensed Mfg Number: 8501RS41V14
• MPN: 8501RS41V14

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: CN
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8536490080
• GDS Category Name: Plug-In Relays
• GDS Family Name: Relays
• GDS Segment Name: Electrical
• UNSPSC: 39121515
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Switches and controls and relays and accessories
• UNSPSC Commodity ID: 15
• UNSPSC Commodity Name: General purpose relays
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
