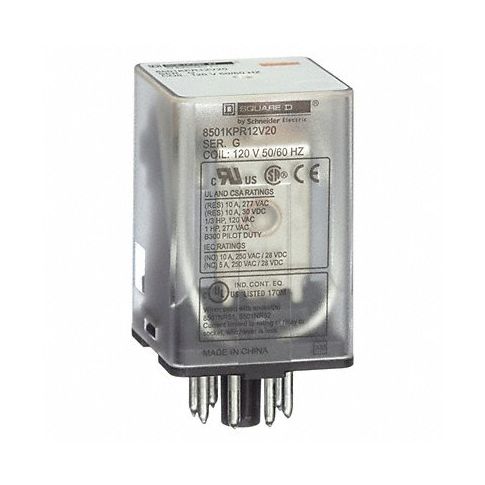

H7953 Gen Purpose Relay 8 Pin Octal 120VAC MPN:8501KPR12V20
Free Shipping
In Stock
Introducing the H7953 Gen Purpose Relay from Schneider - the ultimate multipole switching solution for your commercial and industrial applications. This reliable 8-pin octal relay is designed to handle up to 10 Amps of DC or AC current at 28V and 10A respectively, making it ideal for a wide range of switching applications. With its industry standard wiring and pin arrangements, the H7953 can be seamlessly integrated into your existing system without any modifications, saving you time and money on installation and maintenance. Plus, with a rating of 120V AC, this durable relay is built to withstand tough industrial environments, making it an excellent investment for any business looking to streamline their operations and increase efficiency.
Top product features:
- Octal base type for seamless integration into existing systems
- Industry-standard wiring and pin arrangements for versatility
- Rating of 120V AC and 10A DC or 10A AC for powerful switching capabilities
Top product applications:
- Industrial automation and control systems
- Power management in electrical grids
- Appliances and machinery with remote switching capabilities
Technical Specifications
- Item - Relay General Purpose Relay
- Coil Volts 120V AC
- AC Contact Rating - Relay 10A @ 277V
- DC Contact Rating - Relay 10A @ 28V
- Base Type - Plug In Relay Octal
- Number of Pins - Relay 8
- Contact Form - Relay DPDT
- Mounting - Relay Plug In
- Socket Code - Relay A
- Power Consumption - Relay 3.0 VA
- Contact Material Silver Tin Oxide
- Status Indicator No
- Push To Test No
- Body Height - Relay 2.1 in
- Body Width - Relay 1.4 in
- Body Depth - Relay 1.4 in
- Overall Height - Relay 2.6 in
- HP @ 120V 1/3 hp
- HP @ 240V 1/2 hp
- Standards CE Marked, CSA Certified, UL Listed
Manufacturer Details
- Manufacturer: Schneider
- Condensed Mfg Number: 8501KPR12V20
- MPN: 8501KPR12V20
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536490075
- GDS Category Name: Plug-In Relays
- GDS Family Name: Relays
- GDS Segment Name: Electrical
- UNSPSC: 39121515
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 15
- UNSPSC Commodity Name: General purpose relays
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
