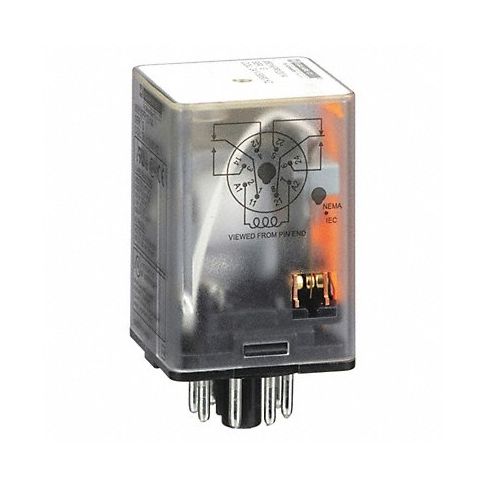

H7953 Gen Purpose Relay 8 Pin Octal 24VAC MPN:8501KPR12V14

Designed for multipole switching applications. Has industry standard wiring and pin arrangements which allow use as replacements for many similar relays without wiring or hardware modifications.

Technical Specifications

• Item - Relay General Purpose Relay
• Coil Volts 24V AC
• AC Contact Rating - Relay 10A @ 277V
• DC Contact Rating - Relay 10A @ 28V
• Base Type - Plug In Relay Octal
• Number of Pins - Relay 8
• Contact Form - Relay DPDT
• Mounting - Relay Plug In
• Socket Code - Relay A
• Power Consumption - Relay 3.0 VA
• Contact Material Silver Tin Oxide
• Status Indicator No
• Push To Test No
• Body Height - Relay 2.1 in
• Body Width - Relay 1.4 in
• Body Depth - Relay 1.4 in
• Overall Height - Relay 2.6 in
• HP @ 120V 1/3 hp
• HP @ 240V 1/2 hp
• Standards CE Marked, CSA Certified, UL Listed

Manufacturer Details

• Manufacturer: Schneider
• Condensed Mfg Number: 8501KPR12V14
• MPN: 8501KPR12V14

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: CN
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8536490080
• GDS Category Name: Plug-In Relays
• GDS Family Name: Relays
• GDS Segment Name: Electrical
• UNSPSC: 39121515
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Switches and controls and relays and accessories
• UNSPSC Commodity ID: 15
• UNSPSC Commodity Name: General purpose relays
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
