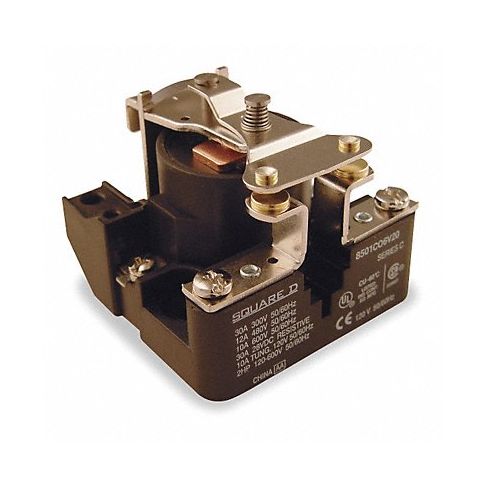

H8162 Open Power Relay 4 Pin 277VAC SPST-NO MPN:8501CO6V04

Use to switch motor loads in applications such as elevators, machine tools, air handling, and HVAC equipment. Minimum operating voltage for AC relays is 85% of nominal voltage. 0.75 power factor.

• Heavy-duty power relays
• Screw-head terminals
• Silver alloy, self-wiping contacts
• Molded thermoset plastic base

Technical Specifications

• Item - Relay Open Power Relay
• Coil Volts 277V AC
• AC Contact Rating - Relay 40A @ 300V
• DC Contact Rating - Relay 40A @ 28V
• Number of Pins - Relay 4
• Contact Form - Relay SPST-NO
• Mounting - Relay Surface
• Power Consumption - Relay 10.0 VA
• Contact Material Silver Tin Oxide
• Electrical Connection - Power Relay Screw Clamp
• Body Height - Relay 1.98 in
• Body Width - Relay 2.5 in
• Body Depth - Relay 2.49 in
• Overall Height - Relay 1.98 in
• HP @ 120V 2
• HP @ 240V 2
• Hz - Electrical 50/60 Hz
• Standards CE, CSA, UL

Manufacturer Details

• Manufacturer: Schneider
• Condensed Mfg Number: 8501CO6V04
• MPN: 8501CO6V04

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: CN
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8536490080
• GDS Category Name: Power Relays
• GDS Family Name: Relays
• GDS Segment Name: Electrical
• UNSPSC: 39121514
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Switches and controls and relays and accessories
• UNSPSC Commodity ID: 14
• UNSPSC Commodity Name: Power relays
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
