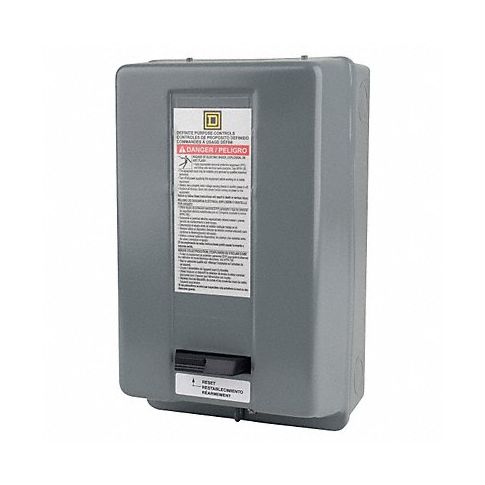

H2696 DP Motor Starter 3P 40A 208 to 240V Coil MPN:8911DPSG43V09
Introducing the H2696 DP Motor Starter from Square D - perfect for your industrial electrical needs! With a capacity of 40 amps AC, this motor starter can handle everything from small machinery to large compressors. The coil volts range from 208 to 240V AC, ensuring compatibility with most electrical systems. And thanks to its NEMA rating of 1, you can rest assured that it's built to last in even the toughest environments. Plus, the definite purpose design means that it's specifically engineered for the rigors of industrial use - so you can trust it to get the job done right. Whether you're working in manufacturing, construction, or any other industry that relies on motorized equipment, the H2696 DP Motor Starter from Square D is a versatile and reliable choice that won't let you down.
Top product features:
- Enclosure NEMA Rating of 1 for industrial use.
- Definite purpose design for rugged performance and reliability.
- Range of coil volts from 208 to 240V AC for compatibility with various electrical systems.
Top product applications:
- Industrial and commercial motor control applications requiring precise starting and stopping control of AC induction motors.
- Use in manufacturing, processing, and material handling systems to automate machinery and equipment operations.
- Installation in hazardous locations where explosive or corrosive gases or dusts may be present.
Technical Specifications
- Item Definite Purpose Magnetic Motor Starter
- Number of Poles 3
- Amps AC 40 A
- Coil Volts 208 to 240V AC
- Enclosure NEMA Rating 1
- HP @ 1 Phase - 120V 3 hp
- HP @ 1 Phase - 240V 7 1/2 hp
- HP @ 3 Phase - 240V 10 hp
- HP @ 3 Phase - 480V 20 hp
- Action Nonreversing
- Hz 50/60
- HP @ 3 Phase - 575V 20 hp
- Height 10.0 in
- Width 6.0 in
- Depth 5.56 in
- Standards UL File E3190 CCN NLDX2/ CSA
- Includes Melting Alloy Overload Block and Trip-Free Reset Mechanism
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: 8911DPSG43V09
- MPN: 8911DPSG43V09
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536504000
- GDS Category Name: Definite Purpose Magnetic Motor Starters
- GDS Family Name: Starters and Contactors
- GDS Segment Name: Electrical
- UNSPSC: 39121521
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 21
- UNSPSC Commodity Name: Motor starter controls
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on October 13, 2023 5:33pm UTC Category: Starters and Contactors
