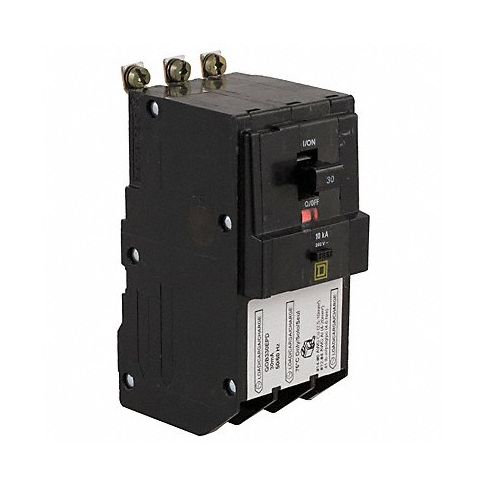

Circuit Breaker 30A Bolt On 240V 3P MPN:QOB330EPD

These QOB series miniature circuit breakers are bolted into place in NQOD and NQ panelboards or interiors, so they're more stable than plug-in or unit-mount circuit breakers. They interrupt currents when low-level faults are detected in the circuit. They have a lug orientation to allow for straight-in wiring through bus bars, which eliminates the need to pigtail wires and helps organize the load center.

Technical Specifications

• Item Miniature Circuit Breaker
• Amps 30 A
• AC Voltage Rating 240V AC
• Circuit Breaker Type Ground Fault Circuit Interrupter
• Number of Poles 3
• DC Voltage Rating Not Rated
• Circuit Breaker Actuator Paddle
• Circuit Breaker Mounting Style Bolt On
• Compatible Panelboard/Load Center Series NQ, QO
• Phase Three
• Series QOB
• Max. AIR Rating 10kA at 240V AC
• For Use With QO Load Centers and NQ Panelboards
• Terminal Connection Lug
• Frame Size 100A/QO
• Length 4.12 in
• Width 2.25 in
• Depth 2.91 in
• Min. Operating Temp. 104 Degrees F
• Max. Operating Temp. 104 Degrees F
• Min. Wire Size 12 AWG (Al), 14 AWG (Cu)
• Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
• Standards CSA, UL Listed

Manufacturer Details

• Manufacturer: Square D
• Condensed Mfg Number: QOB330EPD
• MPN: QOB330EPD

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: MX
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8536200020
• GDS Category Name: Miniature Circuit Breakers
• GDS Family Name: Distribution
• GDS Segment Name: Electrical
• UNSPSC: 39121601
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Circuit protection devices and accessories
• UNSPSC Commodity ID: 01
• UNSPSC Commodity Name: Circuit breakers
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
