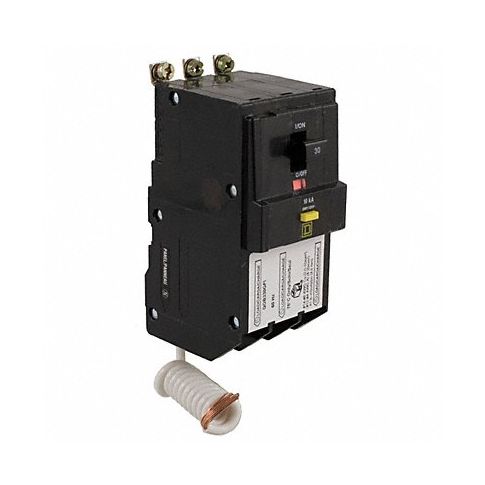

Circuit Breaker 20A Bolt On 120/208V 3P MPN:QOB320GFI
Free Shipping
In Stock
Introducing the QOB series miniature circuit breakers from Square D - designed to deliver exceptional performance for a wide range of applications. With a capacity of 20 amps, these breakers are ideal for protecting lighting and power circuits in commercial or residential settings. The bolted-in design offers added stability and resistance against shocks and vibrations, ensuring your equipment stays protected at all times. The lug orientation makes it easy to wire straight through bus bars, eliminating the need for pigtail wires and helping to organize the load center. And with ground fault circuit interrupter (GFCI) technology, these breakers help prevent electrical shocks by detecting low-level faults in the circuit. Say goodbye to accidental short circuits or overloads - with Square D's QOB series miniature circuit breakers, you can enjoy peace of mind knowing your equipment is protected from harm.
Top product features:
- Bolted-in design for added stability
- Lug orientation for straight-in wiring through bus bars
- GFCI technology to prevent electrical shocks
Top product applications:
- Residential and commercial lighting circuits protection
- Power distribution panels protection
- Individual motor or appliance protection
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 20 A
- AC Voltage Rating 120/208V AC
- Circuit Breaker Type Ground Fault Circuit Interrupter
- Number of Poles 3
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Bolt On
- Compatible Panelboard/Load Center Series NQ, QO
- Phase Three
- Series QOB
- Max. AIR Rating 10kA at 208/120V AC
- For Use With QO Load Centers and NQ Panelboards
- Terminal Connection Lug
- Frame Size 100A/QO
- Length 4.12 in
- Width 2.25 in
- Depth 2.91 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 12 AWG (Al), 14 AWG (Cu)
- Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
- Standards CSA, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QOB320GFI
- MPN: QOB320GFI
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:16pm UTC Category: Distribution
