Mintr Distr Block Al/Cu 600V AC/DC MPN:9080LBA261104
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-6PGF3
Mintr Distr Block Al/Cu 600V AC/DC

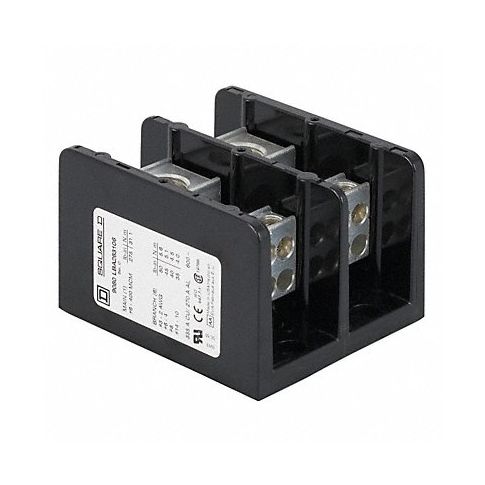

Introducing the Square D Mintr Distr Block Al/Cu 600V AC/DC - the perfect solution for splicing cables or splitting primary power in a wide range of secondary circuits. This efficient aluminum block provides a fixed tap-off point and saves time for contractor rework. With its ability to accept both aluminum and copper wire, it is versatile enough for any job. Ideal for use in commercial and industrial applications, this distribution block offers 115 A of max amps, 2 poles, and a primary wire range of 14-2 AWG. Invest in the Square D Mintr Distr Block Al/Cu 600V AC/DC today and streamline your power management operations!
Top product features:
- Accepts both aluminum and copper wire
- Fixed tap-off point for primary power
- Saves time for contractor rework
Top product applications:
- Splicing cables or splitting primary power in commercial and industrial applications
- Providing a fixed tap-off point for primary circuits
- Saving time during contractor rework
This efficient aluminum block splices cables or splits primary power into a wide range of secondary circuits and provides a fixed tap-off point. It accepts aluminum or copper wire, and saves splicing and taping time for contractor rework.
Technical Specifications
- Item Miniature Distribution Block
- Max. Amps 115 A
- Number of Poles 2
- Primary Connections/Pole 1
- Primary Wire Range (AWG) 14 to 2 AWG
- Secondary Connection/Pole 4
- Secondary Wire Range (AWG) 18 to 10 AWG
- Voltage Rating 600V AC
- Power Distribution Block Design Open
- Length 2.29 in
- Depth 1.53 in
- Width 1.46 in
- Standards CE Marked, CSA File 70361 Class 6228-1, UL File E60616 Guide XCFR2
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: 9080LBA261104
- MPN: 9080LBA261104
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536904000
- GDS Category Name: Power Distribution Blocks
- GDS Family Name: Terminal Blocks
- GDS Segment Name: Electrical
- UNSPSC: 39121410
- UNSPSC Class ID: 14
- UNSPSC Commodity Name: Lugs connectors and terminals
- UNSPSC Commodity ID: 10
- UNSPSC Commodity Name: Terminal blocks
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B00819U4SU, B00CONC7XY, B000LEDOD0
Product info last updated on November 17, 2023 12:15pm UTC Category: Terminal Blocks
