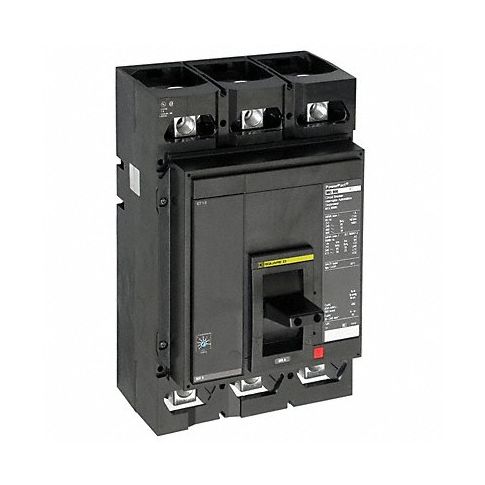

Circuit Breaker 700A 3P 600VAC MJ MPN:MJL36700
SKU
226-cxg-6nhe2
Circuit Breaker 700A 3P 600VAC MJ
The Square D M-frame molded case circuit breaker is the perfect solution for protecting electrical equipment from overcurrent, short-circuit, and ground fault conditions in commercial, industrial, and residential settings. With a rating capacity of up to 800A and 600VAC, this versatile circuit breaker is designed to fit into any application requiring a reliable power source. Its molded case construction offers durability and ease of installation while its advanced features such as ground fault sensing and automatic re-closing help prevent costly downtime caused by electrical faults. The Square D M-frame molded case circuit breaker is the ideal choice for protecting equipment, ensuring power quality, and safeguarding your investment.
Top product features:
- Molded case construction for durability and ease of installation
- Advanced ground fault sensing and automatic re-closing for preventing downtime caused by electrical faults
- Rating capacity up to 800A and 600VAC for versatility and power protection
Top product applications:
- Electrical power protection and overcurrent prevention in construction sites
- Circuit breaker protection for commercial buildings' electrical systems and devices
- Power distribution and control in oil and gas facilities
M-frame Square D molded case circuit breakers are rated up to 800A and 600VAC and interrupt excessive current flows to protect devices from electrical damage. They're used in construction, commercial buildings, oil and gas, and other industrial and commercial applications. Their current-carrying parts, mechanisms, and trip devices are contained in a molded case.
Technical Specifications
- Item Molded Case Circuit Breaker
- Amps 700 A
- AC Voltage Rating 600V AC
- Max. AIR Rating 25kA at 600V AC
- For Use With Equipment Gear
- Series MJ
- High Amp Trip Setting 7,000 A
- Low Amp Trip Setting 1,400 A
- Circuit Breaker Type Standard
- Number of Poles 3
- DC Voltage Rating Not Rated
- Terminal Connection Box Lug
- Trip Type Electronic
- Phase 3
- Instantaneous Trip Adjustable
- Phase Connection ABC
- Frame Size 800A/M
- Circuit Breaker Mounting Style Lug In/Lug Out
- Height 12.9 in
- Width 8.3 in
- Depth 8.1 in
- Min. Wire Size 3/0 AWG
- Max. Wire Size 500 MCM
- Circuit Breaker Actuator Toggle
- Standards CSA, IEC, UL listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: MJL36700
- MPN: MJL36700
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Molded Case Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
