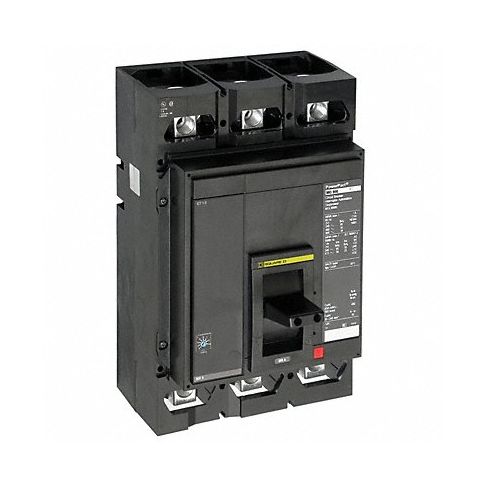

Circuit Breaker 300A 3P 600VAC MJ MPN:MJL36300
Introducing Square D's M-frame molded case circuit breaker - the ultimate solution for protecting your electrical equipment from excessive current flows. With a rating of 300A and 600VAC, these breakers are designed to handle demanding applications in construction, commercial buildings, oil and gas, and other industrial settings. The molded case design provides robust protection against electrical hazards, while the current-carrying parts, mechanisms, and trip devices ensure reliable operation. The 300A rating makes it ideal for medium to heavy load applications, while its versatile voltage range of 600VAC caters to a wide variety of equipment types. Additionally, the compact size and lightweight design make installation a breeze. Upgrade your electrical system with Square D's Molded Case Circuit Breaker and experience the peace of mind that comes with knowing your equipment is protected from damage caused by excessive current flows.
Top product features:
- High current rating (300A) for medium to heavy load applications
- Versatile voltage range of 600VAC for various equipment types
- Molded case design for robust protection against electrical hazards
Top product applications:
- Industrial and commercial power distribution systems
- Hazardous location installations where flammable gases or vapors are present
- Outdoor electrical equipment protection in harsh environments
Technical Specifications
- Item Molded Case Circuit Breaker
- Amps 300 A
- AC Voltage Rating 600V AC
- Max. AIR Rating 25kA at 600V AC
- For Use With Equipment Gear
- Series MJ
- High Amp Trip Setting 3,000 A
- Low Amp Trip Setting 600 A
- Circuit Breaker Type Standard
- Number of Poles 3
- DC Voltage Rating Not Rated
- Terminal Connection Box Lug
- Trip Type Electronic
- Phase 3
- Instantaneous Trip Adjustable
- Phase Connection CBA
- Frame Size 800A/M
- Circuit Breaker Mounting Style Lug In/Lug Out
- Height 12.9 in
- Width 8.3 in
- Depth 8.1 in
- Min. Wire Size 3/0 AWG
- Max. Wire Size 500 MCM
- Circuit Breaker Actuator Toggle
- Standards CSA, IEC, UL listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: MJL36300
- MPN: MJL36300
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Molded Case Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 4, 2024 9:48am UTC Category: Distribution
