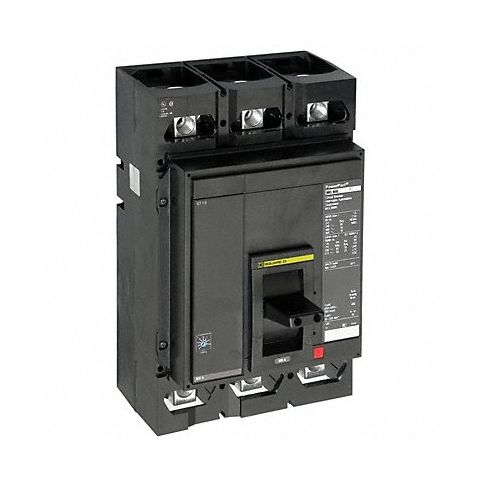

Circuit Breaker 600A 2P 600VAC MJ MPN:MJL26600

M-frame Square D molded case circuit breakers are rated up to 800A and 600VAC and interrupt excessive current flows to protect devices from electrical damage. They're used in construction, commercial buildings, oil and gas, and other industrial and commercial applications. Their current-carrying parts, mechanisms, and trip devices are contained in a molded case.

Technical Specifications

• Item Molded Case Circuit Breaker
• Amps 600 A
• AC Voltage Rating 600V AC
• Max. AIR Rating 25kA at 600V AC
• For Use With Equipment Gear
• Series MJ
• High Amp Trip Setting 6,000 A
• Low Amp Trip Setting 1,200 A
• Circuit Breaker Type Standard
• Number of Poles 2
• DC Voltage Rating Not Rated
• Terminal Connection Box Lug
• Trip Type Electronic
• Phase 1
• Instantaneous Trip Adjustable
• Phase Connection CBA
• Frame Size 800A/M
• Circuit Breaker Mounting Style Lug In/Lug Out
• Height 12.9 in
• Width 8.3 in
• Depth 8.1 in
• Min. Wire Size 3/0 AWG
• Max. Wire Size 500 MCM
• Circuit Breaker Actuator Toggle
• Standards BS, CCC, CEI, CSA Certified, Federal Specification W-C-375B/GEN, IEC, NEMA, NMX, UL Listed, UNE, UTE, VDE

Manufacturer Details

• Manufacturer: Square D
• Condensed Mfg Number: MJL26600
• MPN: MJL26600

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8536200020
• GDS Category Name: Molded Case Circuit Breakers
• GDS Family Name: Distribution
• GDS Segment Name: Electrical
• UNSPSC: 39121601
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Circuit protection devices and accessories
• UNSPSC Commodity ID: 01
• UNSPSC Commodity Name: Circuit breakers
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
