Circuit Breaker 400A 3P 600VAC MJ MPN:MJA36400
SKU
226-cxg-6nhc2

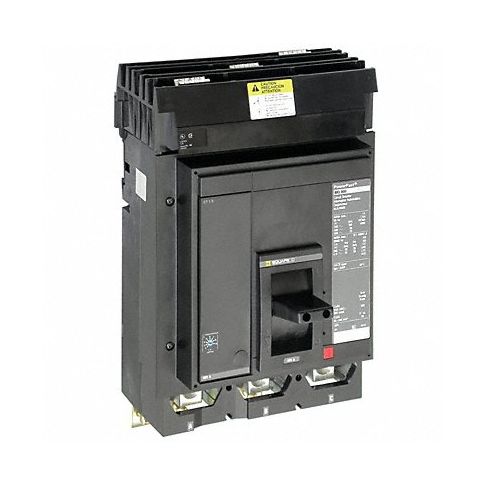

Circuit Breaker 400A 3P 600VAC MJ
The Square D M-frame molded case circuit breaker is designed for industrial and commercial uses, providing exceptional performance and durability. With a capacity of up to 800A and a voltage rating of 600VAC, this breaker is perfect for managing high-current electrical systems with ease. The compact and lightweight design makes it easy to install in tight spaces, while the trip device ensures that any potential issues are quickly detected and corrected. From construction sites to manufacturing plants, this circuit breaker offers unbeatable protection and peace of mind for any electrical application.
Top product features:
- High current capacity of up to 800A
- Compact and lightweight design
- Trip device for detecting potential issues and protection
Top product applications:
- Construction and building sites for managing high current electrical systems
- Commercial buildings for protecting equipment and devices from electrical damage
- Industrial settings to interrupt excessive currents in electrical systems
M-frame Square D molded case circuit breakers are rated up to 800A and 600VAC and interrupt excessive current flows to protect devices from electrical damage. They're used in construction, commercial buildings, oil and gas, and other industrial and commercial applications. Their current-carrying parts, mechanisms, and trip devices are contained in a molded case.
Technical Specifications
- Item Molded Case Circuit Breaker
- Amps 400 A
- AC Voltage Rating 600V AC
- Max. AIR Rating 25kA at 600V AC
- For Use With I Line Panelboards
- Series MJ
- High Amp Trip Setting 4,000 A
- Low Amp Trip Setting 800 A
- Circuit Breaker Type Standard
- Number of Poles 3
- DC Voltage Rating Not Rated
- Terminal Connection Box Lug
- Trip Type Electronic
- Phase 3
- Instantaneous Trip Adjustable
- Phase Connection ABC
- Frame Size 800A/M
- Circuit Breaker Mounting Style Panel Mount
- Height 12.9 in
- Width 8.3 in
- Depth 8.1 in
- Min. Wire Size 3/0 AWG
- Max. Wire Size 500 MCM
- Circuit Breaker Actuator Toggle
- Standards CSA, IEC, UL listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: MJA36400
- MPN: MJA36400
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Molded Case Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
