Load Center 125A Lug 3 Phase 24 Spaces MPN:QO324L125G
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-6B460

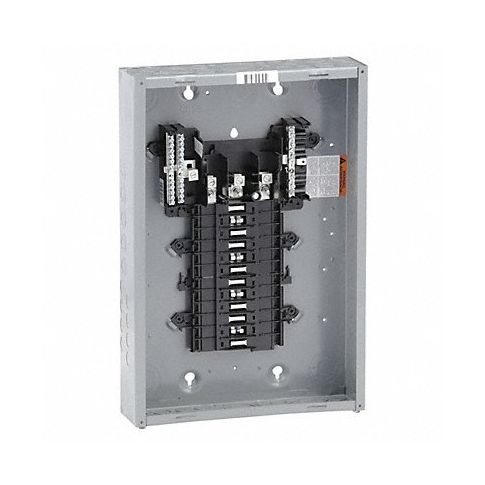

Load Center 125A Lug 3 Phase 24 Spaces
The Load Center from Square D is a reliable and versatile load center designed to distribute power in commercial and industrial environments. With a capacity of 125 amps and 24 spaces for circuit breakers, this unit is ideal for residential or large-scale projects alike. The rugged construction ensures durability even under heavy usage, while its ease of installation makes it the go-to solution for busy professionals. Additionally, the load center's compatibility with QO circuit breakers further enhances safety and ensures optimal performance at all times. Invest in the Load Center from Square D today and enjoy peace of mind that comes with reliable power distribution!
Top product features:
- Spaces for 24 Circuit Breakers
- Capacity of 125 Amps
- Compatibility with QO Series Circuit Breakers
Top product applications:
- Residential Settings for distributed power in single-family homes
- Commercial Spaces to distribute power across multiple rooms and areas of a commercial building
- Industrial Environments as a reliable power distribution center in large, industrial facilities
These Square D main lug load centers distribute power downstream from main breakers and are used when all the circuit slots in the main breaker load center are full or when a remote panel is desired. They're used with QO series circuit breakers to protect circuits from overcurrents. They are used in residential, commercial, and industrial applications.
Technical Specifications
- Item Load Center
- Number of Spaces 24
- Amps 125 A
- Voltage 208Y/120/240V AC
- Circuit Breaker Type QO
- Included Enclosure Cover Order Separately
- Main Circuit Breaker or Main Lug Main Lug
- Max. No. of Tandem Breakers 0
- Phase 3
- Series QO
- Height 20 29/32 in
- Width 14 1/4 in
- Depth 3 3/4 in
- For Use With Square D QO Circuit Breakers
- Bus Material Tin Plated Copper
- Short Circuit Current Rating 65kA
- Enclosure NEMA Rating 1
- Recommended Flush Cover 1D433
- Recommended Ground Bar Kit Included
- Recommended Surface Cover 1D434
- Color Gray
- Enclosure Material Steel
- Enclosure Surface Finish Enamel
- Feed Location Top/Bottom
- Max. Operating Temp. 104 Degrees F
- Min. Operating Temp. 23 Degrees F
- Special Features Mercury Free
- Location Indoor
- Standards RoHS Compliant, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QO324L125G
- MPN: QO324L125G
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8537109050
- GDS Category Name: Load Centers and Panelboards
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121101
- UNSPSC Class ID: 11
- UNSPSC Commodity Name: Distribution and control centers and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Load centers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B00PSN2Y4E
Product info last updated on November 17, 2023 12:17pm UTC Category: Distribution
