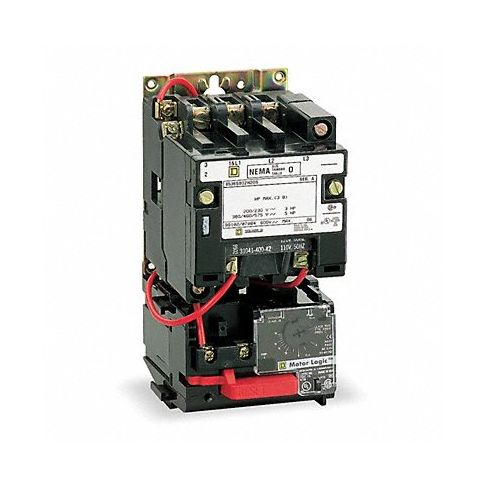

NEMA Magnetic Motor Starter MPN:8536SFO1V03H30
Free Shipping
In Stock
Introducing NEMA Magnetic Motor Starter by Square D an innovative solution for controlling and protecting your AC motors. Our state-of-the-art motor starters are designed to provide reliable and efficient start and stop functions for three-phase motors. They offer Class 10/20 selectable thermal protection, ensuring maximum safety and security for your operations. With their solid-state overload relays, our motor starters provide an added layer of protection against overloads, keeping your motors running smoothly without any damage. The trip-free construction allows the overload relay to trip even if the reset lever is blocked or in the reset position, minimizing downtime and maintenance costs. Equipped with heaterless construction and adjustable full load amp setting, our motor starters offer maximum energy efficiency, reducing your operating costs. Available in 3-pole, 60/50 Hz, 600VAC max versions, these versatile motor starters can be used in a wide range of applications across various industries. Get your NEMA Magnetic Motor Starter today and enjoy the peace of mind that comes with reliable and efficient motor control!
Top product features:
- Class 10/20 selectable thermal protection for maximum safety and security.
- Adjustable full load amp setting for energy efficiency.
- Trip-free construction to minimize downtime and maintenance costs.
Top product applications:
- Controlling and protecting three-phase AC motors in industrial settings.
- Starting and stopping motors in a wide range of voltages and currents.
- Preventing damage caused by overloads or locked rotor conditions.
Technical Specifications
- Item NEMA Magnetic Motor Starter
- Overload Relay Amp Setting 40 to 135A
- Coil Volts 240V AC
- Enclosure NEMA Rating No Enclosure
- Auxiliary Contact Form 1NO
- HP @ 3 Phase - 240V 50 hp
- HP @ 3 Phase - 480V 100 hp
- Starter Type NEMA Style
- Action Nonreversing
- Hz 50/60
- Number of Poles 3
- Amps AC 135
- NEMA Size 4
- Width 6.5 in
- Features Solid State Overload Relay
- Includes Solid state overload relay
- HP @ 3 Phase - 575V 100 hp
- HP @ 3 Phase - 208V 40 hp
- Height 13 in
- Depth 6 in
- Standards CSA, UL
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: 8536SFO1V03H30
- MPN: 8536SFO1V03H30
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536504000
- GDS Category Name: Magnetic Starters with Electronic Overload
- GDS Family Name: Starters and Contactors
- GDS Segment Name: Electrical
- UNSPSC: 39121521
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 21
- UNSPSC Commodity Name: Motor starter controls
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:17pm UTC Category: Starters and Contactors
